492
Y. V. Naidich et al.

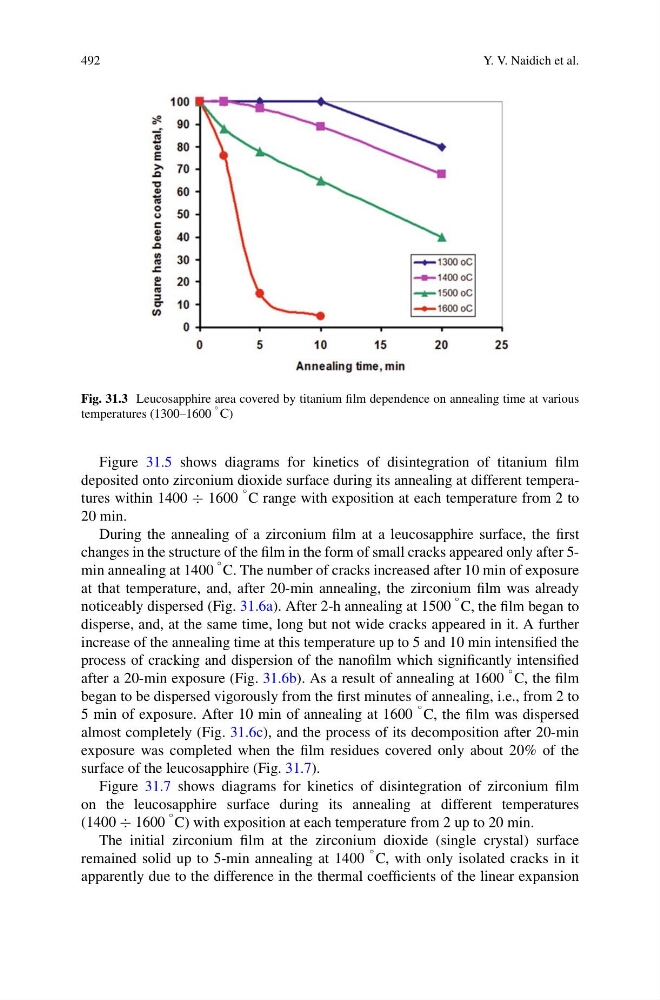

Fig. 31.3 Leucosapphire area covered by titanium film dependence on annealing time at various
temperatures (1300–1600
◦ ´)
Figure 31.5 shows diagrams for kinetics of disintegration of titanium film
deposited onto zirconium dioxide surface during its annealing at different temperatures within 1400 ÷ 1600
◦ C range with exposition at each temperature from 2 to
20 min.
During the annealing of a zirconium film at a leucosapphire surface, the first
changes in the structure of the film in the form of small cracks appeared only after 5min annealing at 1400
◦ C. The number of cracks increased after 10 min of exposure
at that temperature, and, after 20-min annealing, the zirconium film was already
noticeably dispersed (Fig. 31.6a). After 2-h annealing at 1500
◦ C, the film began to
disperse, and, at the same time, long but not wide cracks appeared in it. A further
increase of the annealing time at this temperature up to 5 and 10 min intensified the
process of cracking and dispersion of the nanofilm which significantly intensified
after a 20-min exposure (Fig. 31.6b). As a result of annealing at 1600
◦ C, the film
began to be dispersed vigorously from the first minutes of annealing, i.e., from 2 to
5 min of exposure. After 10 min of annealing at 1600
◦ C, the film was dispersed
almost completely (Fig. 31.6c), and the process of its decomposition after 20-min
exposure was completed when the film residues covered only about 20% of the
surface of the leucosapphire (Fig. 31.7).
Figure 31.7 shows diagrams for kinetics of disintegration of zirconium film
on the leucosapphire surface during its annealing at different temperatures
(1400 ÷ 1600
◦ C) with exposition at each temperature from 2 up to 20 min.
The initial zirconium film at the zirconium dioxide (single crystal) surface
remained solid up to 5-min annealing at 1400
◦ C, with only isolated cracks in it
apparently due to the difference in the thermal coefficients of the linear expansion
