1 Nanostructured Functional Coatings of Iron Family Metals with Refractory. . .
13

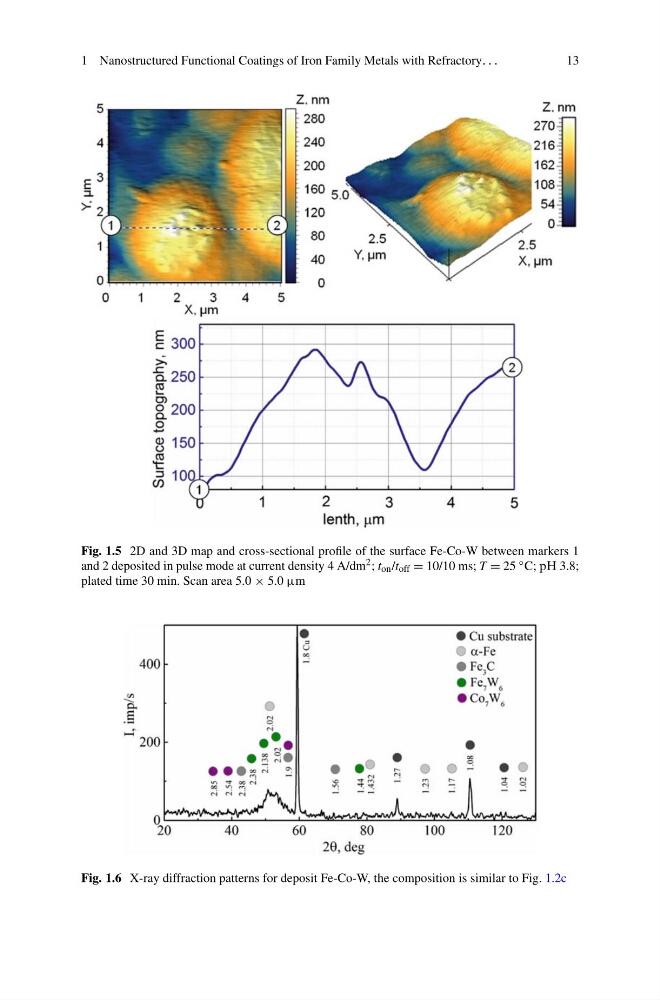

Fig. 1.5 2D and 3D map and cross-sectional profile of the surface Fe-Co-W between markers 1
and 2 deposited in pulse mode at current density 4 A/dm 2 ; t on /t off = 10/10 ms; T = 25 ◦ C; Ó° 3.8;
plated time 30 min. Scan area 5.0 × 5.0 μm
Fig. 1.6 X-ray diffraction patterns for deposit Fe-Co-W, the composition is similar to Fig. 1.2c
13
Fig. 1.5 2D and 3D map and cross-sectional profile of the surface Fe-Co-W between markers 1
and 2 deposited in pulse mode at current density 4 A/dm 2 ; t on /t off = 10/10 ms; T = 25 ◦ C; Ó° 3.8;
plated time 30 min. Scan area 5.0 × 5.0 μm
Fig. 1.6 X-ray diffraction patterns for deposit Fe-Co-W, the composition is similar to Fig. 1.2c
