292
V. Raczy´ nska et al.

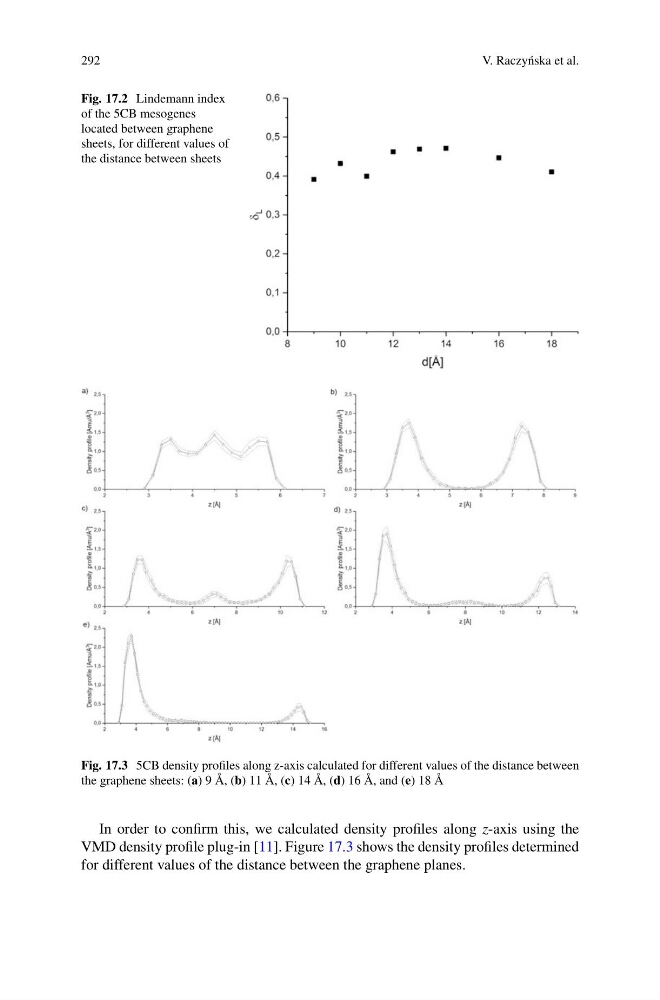

Fig. 17.2 Lindemann index
of the 5CB mesogenes
located between graphene
sheets, for different values of
the distance between sheets
Fig. 17.3 5CB density profiles along z-axis calculated for different values of the distance between
the graphene sheets: (a) 9 Å, (b) 11 Å, (c) 14 Å, (d) 16 Å, and (e) 18 Å
In order to confirm this, we calculated density profiles along z-axis using the
VMD density profile plug-in [11]. Figure 17.3 shows the density profiles determined
for different values of the distance between the graphene planes.
