180
Biologically Inspired Robotics
Cantilever
Nanomanipulator
Tip
Cell
Aluminum substrate
Sharp tip
Flat tip
3 μm
3 μm
a
b
c
d
10 μm
δ
I
F

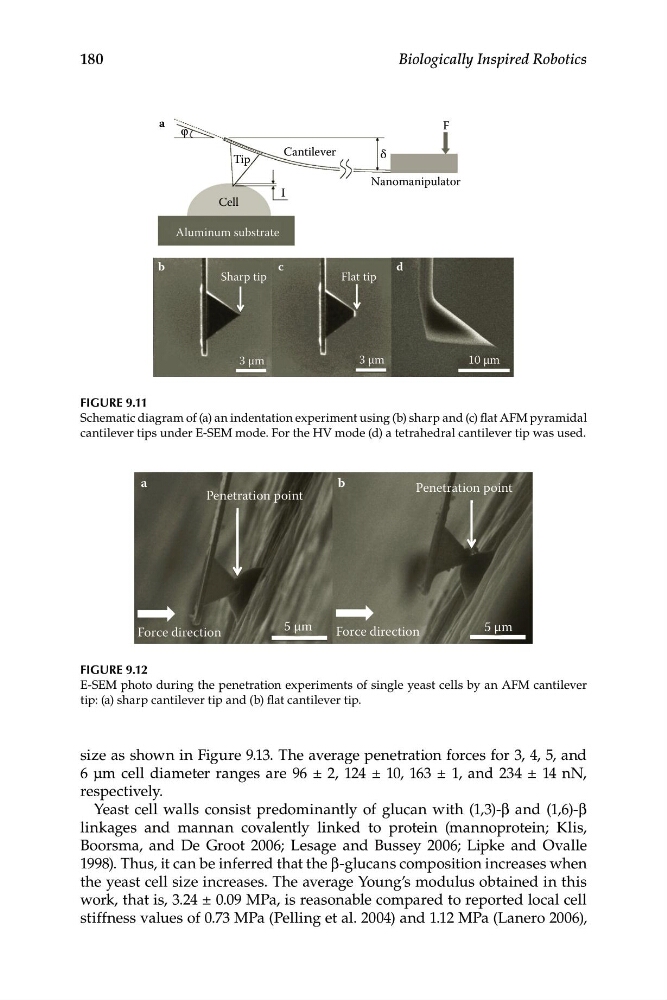

FIGURE 9.11
Schematic diagram of (a) an indentation experiment using (b) sharp and (c) flat AFM pyramidal
cantilever tips under E-SEM mode. For the HV mode (d) a tetrahedral cantilever tip was used.
a
b
Penetration point
Penetration point
5 μm
5 μm
Force direction
Force direction
FIGURE 9.12
E-SEM photo during the penetration experiments of single yeast cells by an AFM cantilever
tip: (a) sharp cantilever tip and (b) flat cantilever tip.
size as shown in Figure 9.13. The average penetration forces for 3, 4, 5, and
6 μm cell diameter ranges are 96 ± 2, 124 ± 10, 163 ± 1, and 234 ± 14 nN,
respectively.
Yeast cell walls consist predominantly of glucan with (1,3)-β and (1,6)-β
linkages and mannan covalently linked to protein (mannoprotein; Klis,
Boorsma, and De Groot 2006; Lesage and Bussey 2006; Lipke and Ovalle
1998). Thus, it can be inferred that the β-glucans composition increases when
the yeast cell size increases. The average Young’s modulus obtained in this
work, that is, 3.24 ± 0.09 MPa, is reasonable compared to reported local cell
stiffness values of 0.73 MPa (Pelling et al. 2004) and 1.12 MPa (Lanero 2006),
