5 Tailored Biointerfaces via Derivatization of Polystyrene-b-Poly …

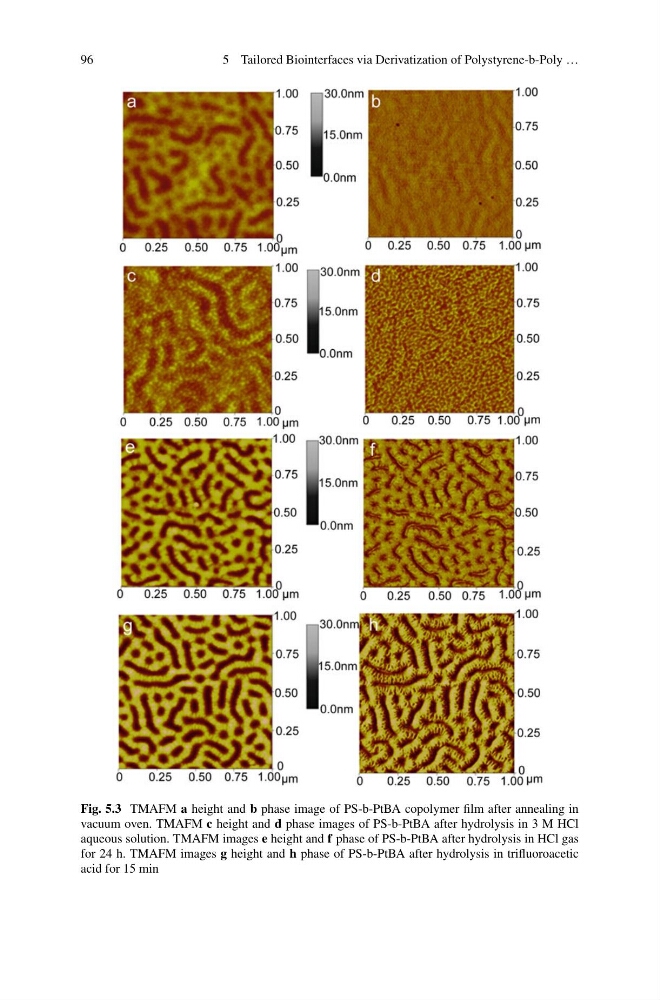

Fig. 5.3 TMAFM a height and b phase image of PS-b-PtBA copolymer film after annealing in
vacuum oven. TMAFM c height and d phase images of PS-b-PtBA after hydrolysis in 3 M HCl
aqueous solution. TMAFM images e height and f phase of PS-b-PtBA after hydrolysis in HCl gas
for 24 h. TMAFM images g height and h phase of PS-b-PtBA after hydrolysis in trifluoroacetic
acid for 15 min
5 Tailored Biointerfaces via Derivatization of Polystyrene-b-Poly …
Fig. 5.3 TMAFM a height and b phase image of PS-b-PtBA copolymer film after annealing in
vacuum oven. TMAFM c height and d phase images of PS-b-PtBA after hydrolysis in 3 M HCl
aqueous solution. TMAFM images e height and f phase of PS-b-PtBA after hydrolysis in HCl gas
for 24 h. TMAFM images g height and h phase of PS-b-PtBA after hydrolysis in trifluoroacetic
acid for 15 min
