Numerical Simulation of Positive Surge Moving Upstream
291

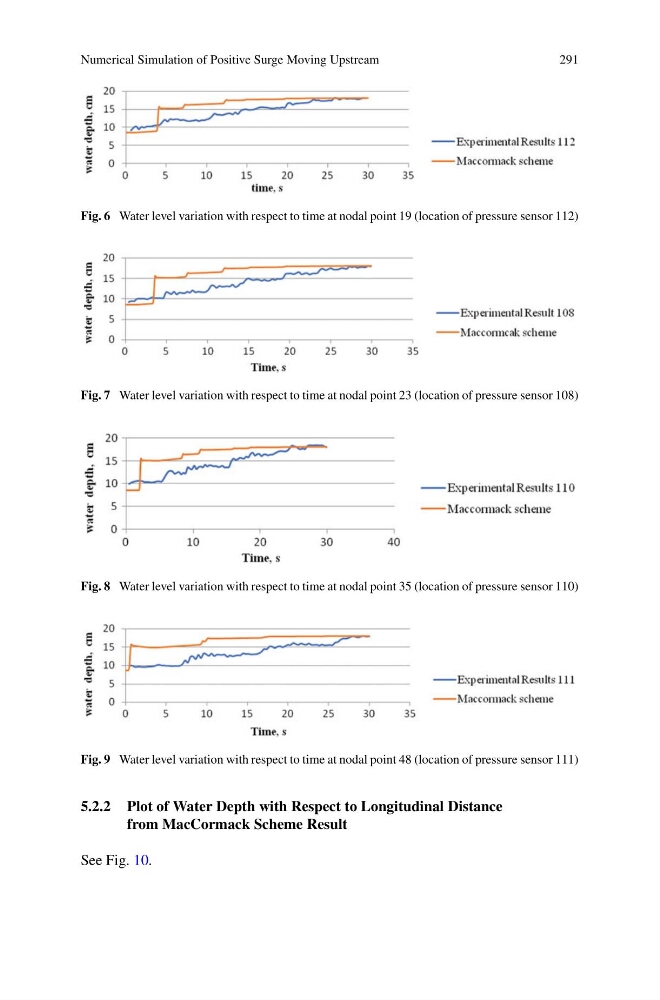

Fig. 6 Water level variation with respect to time at nodal point 19 (location of pressure sensor 112)
Fig. 7 Water level variation with respect to time at nodal point 23 (location of pressure sensor 108)
Fig. 8 Water level variation with respect to time at nodal point 35 (location of pressure sensor 110)
Fig. 9 Water level variation with respect to time at nodal point 48 (location of pressure sensor 111)
5.2.2 Plot of Water Depth with Respect to Longitudinal Distance
from MacCormack Scheme Result
See Fig. 10.
