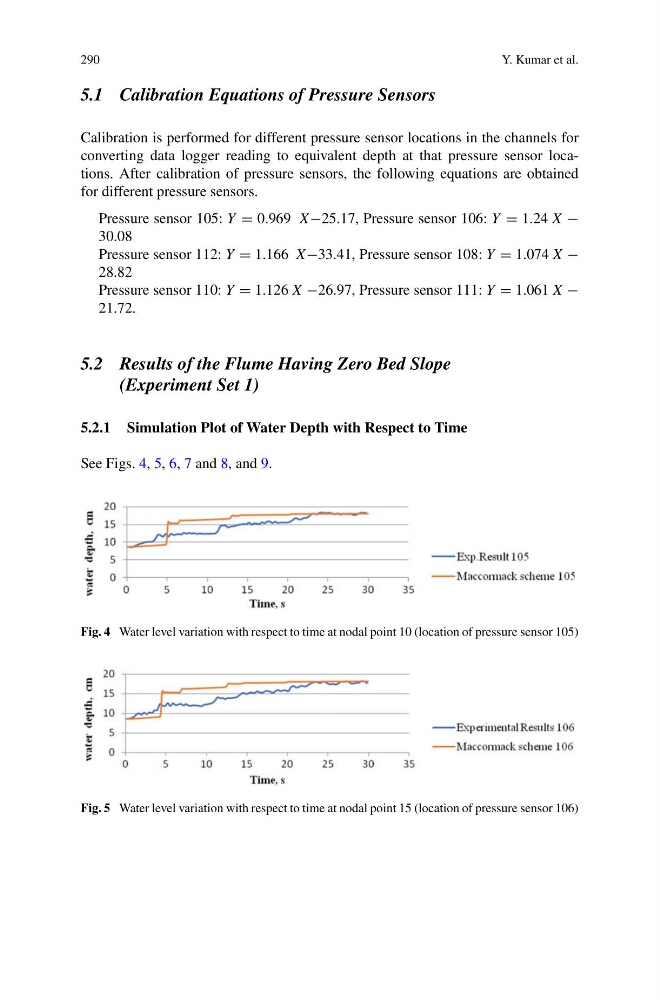

290
Y. Kumar et al.
5.1 Calibration Equations of Pressure Sensors
Calibration is performed for different pressure sensor locations in the channels for
converting data logger reading to equivalent depth at that pressure sensor locations. After calibration of pressure sensors, the following equations are obtained
for different pressure sensors.
Pressure sensor 105: Y = 0.969 X−25.17, Pressure sensor 106: Y = 1.24 X −
30.08
Pressure sensor 112: Y = 1.166 X−33.41, Pressure sensor 108: Y = 1.074 X −
28.82
Pressure sensor 110: Y = 1.126 X −26.97, Pressure sensor 111: Y = 1.061 X −
21.72.
5.2 Results of the Flume Having Zero Bed Slope
(Experiment Set 1)
5.2.1 Simulation Plot of Water Depth with Respect to Time
See Figs. 4, 5, 6, 7 and 8, and 9.
Fig. 4 Water level variation with respect to time at nodal point 10 (location of pressure sensor 105)
Fig. 5 Water level variation with respect to time at nodal point 15 (location of pressure sensor 106)
