Performance Estimation of Defected Ternary Photonic …
43

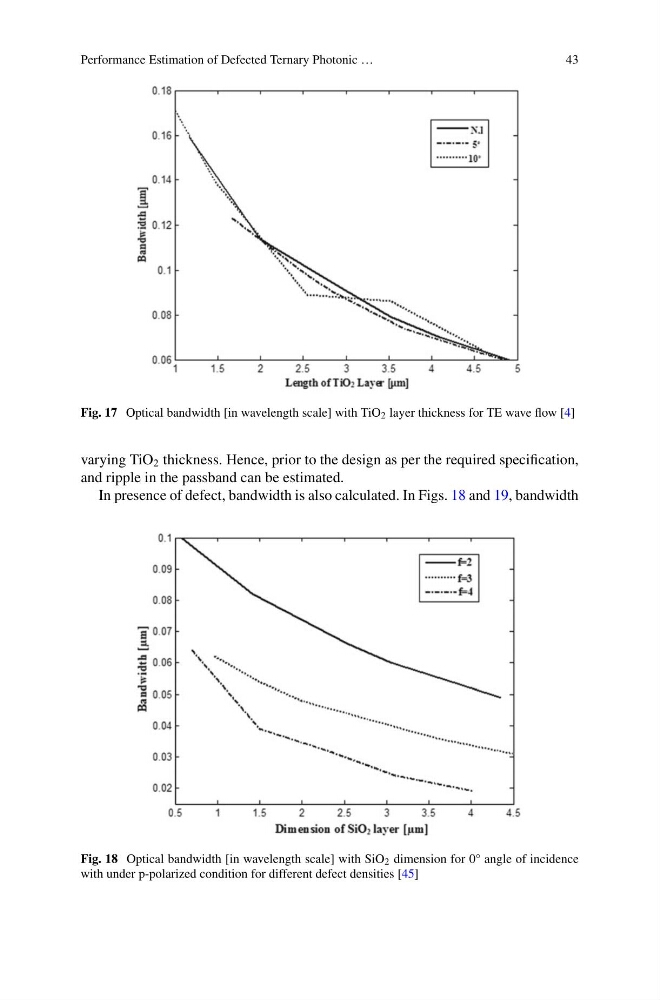

Fig. 17 Optical bandwidth [in wavelength scale] with TiO 2 layer thickness for TE wave flow [4]
varying TiO 2 thickness. Hence, prior to the design as per the required specification,
and ripple in the passband can be estimated.
In presence of defect, bandwidth is also calculated. In Figs. 18 and 19, bandwidth
Fig. 18 Optical bandwidth [in wavelength scale] with SiO 2 dimension for 0° angle of incidence
with under p-polarized condition for different defect densities [45]
43
Fig. 17 Optical bandwidth [in wavelength scale] with TiO 2 layer thickness for TE wave flow [4]
varying TiO 2 thickness. Hence, prior to the design as per the required specification,
and ripple in the passband can be estimated.
In presence of defect, bandwidth is also calculated. In Figs. 18 and 19, bandwidth
Fig. 18 Optical bandwidth [in wavelength scale] with SiO 2 dimension for 0° angle of incidence
with under p-polarized condition for different defect densities [45]
