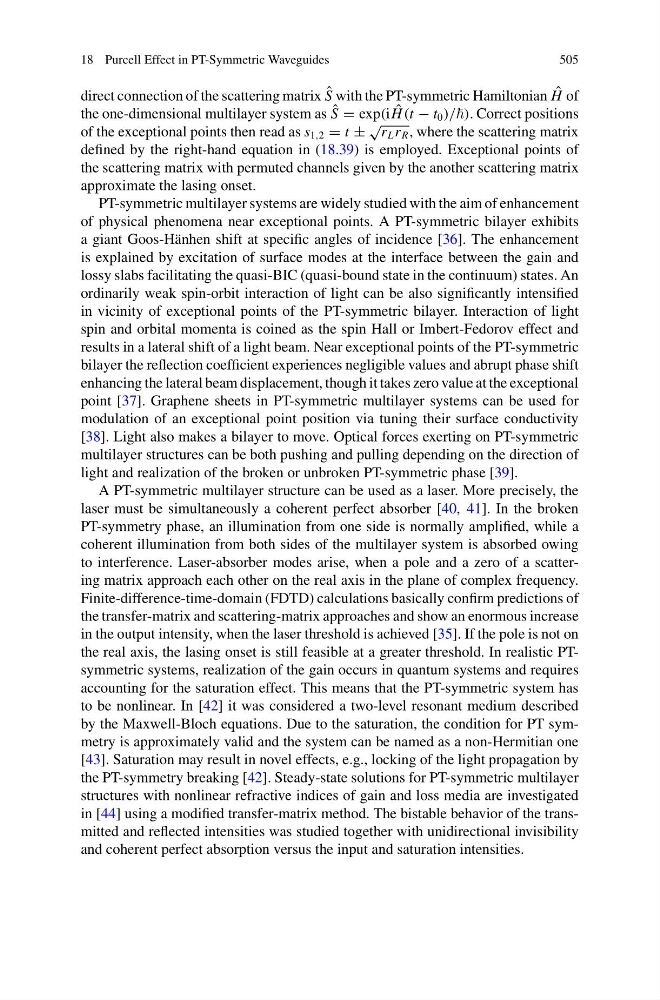

18 Purcell Effect in PT-Symmetric Waveguides
505
direct connection of the scattering matrix ˆ
S with the PT-symmetric Hamiltonian ˆ
H of
the one-dimensional multilayer system as ˆ
S = exp(i ˆ
H (t − t 0 )/). Correct positions
of the exceptional points then read as s 1,2 = t ±
√
r L r R , where the scattering matrix
defined by the right-hand equation in (18.39) is employed. Exceptional points of
the scattering matrix with permuted channels given by the another scattering matrix
approximate the lasing onset.
PT-symmetric multilayer systems are widely studied with the aim of enhancement
of physical phenomena near exceptional points. A PT-symmetric bilayer exhibits
a giant Goos-Hänhen shift at specific angles of incidence [36]. The enhancement
is explained by excitation of surface modes at the interface between the gain and
lossy slabs facilitating the quasi-BIC (quasi-bound state in the continuum) states. An
ordinarily weak spin-orbit interaction of light can be also significantly intensified
in vicinity of exceptional points of the PT-symmetric bilayer. Interaction of light
spin and orbital momenta is coined as the spin Hall or Imbert-Fedorov effect and
results in a lateral shift of a light beam. Near exceptional points of the PT-symmetric
bilayer the reflection coefficient experiences negligible values and abrupt phase shift
enhancing the lateral beam displacement, though it takes zero value at the exceptional
point [37]. Graphene sheets in PT-symmetric multilayer systems can be used for
modulation of an exceptional point position via tuning their surface conductivity
[38]. Light also makes a bilayer to move. Optical forces exerting on PT-symmetric
multilayer structures can be both pushing and pulling depending on the direction of
light and realization of the broken or unbroken PT-symmetric phase [39].
A PT-symmetric multilayer structure can be used as a laser. More precisely, the
laser must be simultaneously a coherent perfect absorber [40, 41]. In the broken
PT-symmetry phase, an illumination from one side is normally amplified, while a
coherent illumination from both sides of the multilayer system is absorbed owing
to interference. Laser-absorber modes arise, when a pole and a zero of a scattering matrix approach each other on the real axis in the plane of complex frequency.
Finite-difference-time-domain (FDTD) calculations basically confirm predictions of
the transfer-matrix and scattering-matrix approaches and show an enormous increase
in the output intensity, when the laser threshold is achieved [35]. If the pole is not on
the real axis, the lasing onset is still feasible at a greater threshold. In realistic PTsymmetric systems, realization of the gain occurs in quantum systems and requires
accounting for the saturation effect. This means that the PT-symmetric system has
to be nonlinear. In [42] it was considered a two-level resonant medium described
by the Maxwell-Bloch equations. Due to the saturation, the condition for PT symmetry is approximately valid and the system can be named as a non-Hermitian one
[43]. Saturation may result in novel effects, e.g., locking of the light propagation by
the PT-symmetry breaking [42]. Steady-state solutions for PT-symmetric multilayer
structures with nonlinear refractive indices of gain and loss media are investigated
in [44] using a modified transfer-matrix method. The bistable behavior of the transmitted and reflected intensities was studied together with unidirectional invisibility
and coherent perfect absorption versus the input and saturation intensities.
