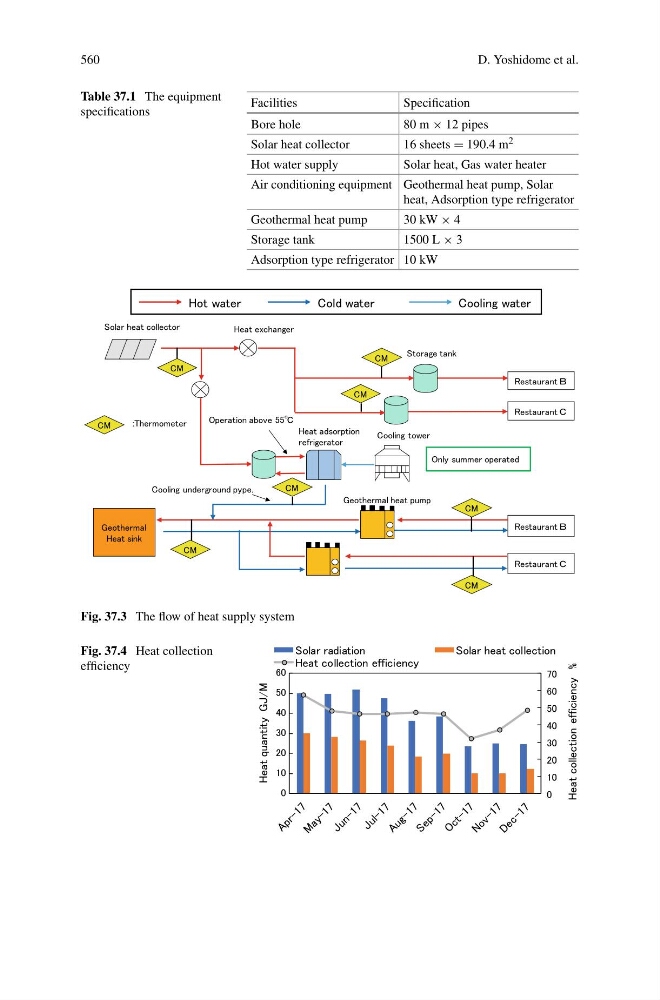

Table 37.1 The equipment
specifications
Facilities
Specification
Bore hole
80 m × 12 pipes
Solar heat collector
16 sheets = 190.4 m 2
Hot water supply
Solar heat, Gas water heater
Air conditioning equipment Geothermal heat pump, Solar
heat, Adsorption type refrigerator
Geothermal heat pump
30 kW × 4
Storage tank
1500 L × 3
Adsorption type refrigerator 10 kW
Fig. 37.3 The flow of heat supply system
Fig. 37.4 Heat collection
efficiency
