56
METHODS OF MEASURING PROPERTIES
The third technique in wide use for nanostnicture surface studies is atomic force
microscopy, and Fig. 3.20 presents a diagram of a typical atomic force microscope
(AFM). The Fundamcntd diffience between the STM and thc AFM is that the
former monitors the elcctric tunneling current between the surface and the probe tip
u- Optical Fiber
Fiezoeletric Tube Scanners Y .
Position Sensitive
Diode Array
X

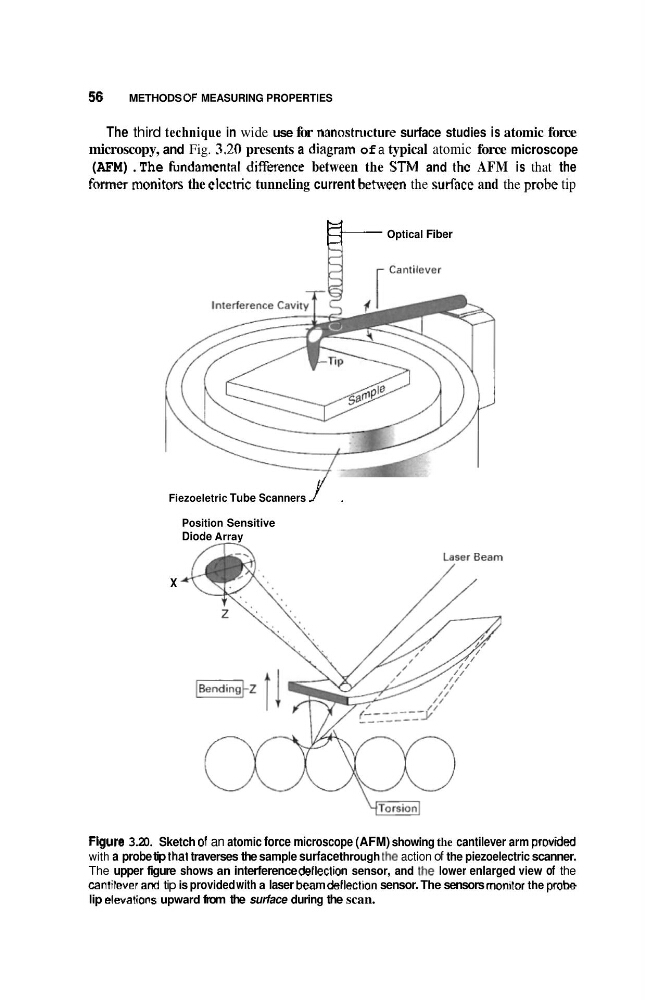

Flgure 3.20. Sketch of an atomic force microscope (AFM) showing the cantilever arm provided
with a probe tip thal traverses the sample surface through the action of the piezoelectric scanner.
The upper figure shows an interference defledion sensor, and the lower enlarged view of the
cantitever a d tip is provided with a laser beam deflectlon sensor. The sensors momlor the probe
lip elevalions upward from the surface during the scan.
