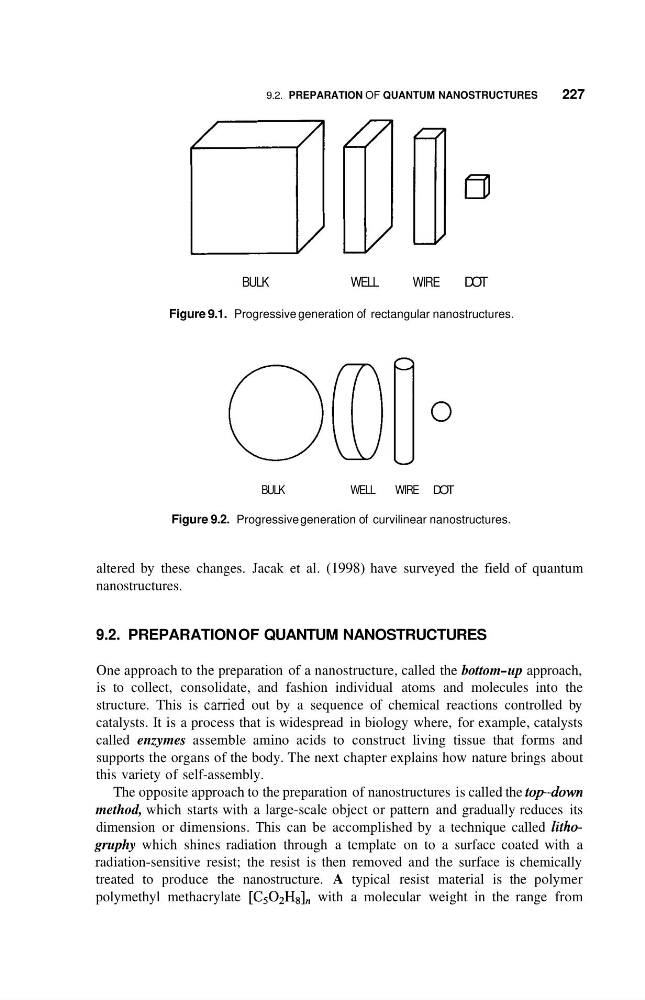

9.2. PREPARATION OF QUANTUM NANOSTRUCTURES
227
BULK
WELL
WIRE
DOT
Figure 9.1. Progressive generation of rectangular nanostructures.
BULK
WELL
WIRE DOT
Figure 9.2. Progressive generation of curvilinear nanostructures.
altered by these changes. Jacak et al. (1998) have surveyed the field of quantum
nanostructures.
9.2. PREPARATION OF QUANTUM NANOSTRUCTURES
One approach to the preparation of a nanostructure, called the bottom-up approach,
is to collect, consolidate, and fashion individual atoms and molecules into the
structure. This is camed out by a sequence of chemical reactions controlled by
catalysts. It is a process that is widespread in biology where, for example, catalysts
called enzymes assemble amino acids to construct living tissue that forms and
supports the organs of the body. The next chapter explains how nature brings about
this variety of self-assembly.
The opposite approach to the preparation of nanostructures is called the top-down
method, which starts with a large-scale object or pattern and gradually reduces its
dimension or dimensions. This can be accomplished by a technique called Zithogruphy which shines radiation through a template on to a surface coated with a
radiation-sensitive resist; the resist is then removed and the surface is chemically
treated to produce the nanostructure. A typical resist material is the polymer
polymethyl methacrylate [C5O2H8In with a molecular weight in the range from
