284
Biomedical Signal and Image Processing
(a)
(b)

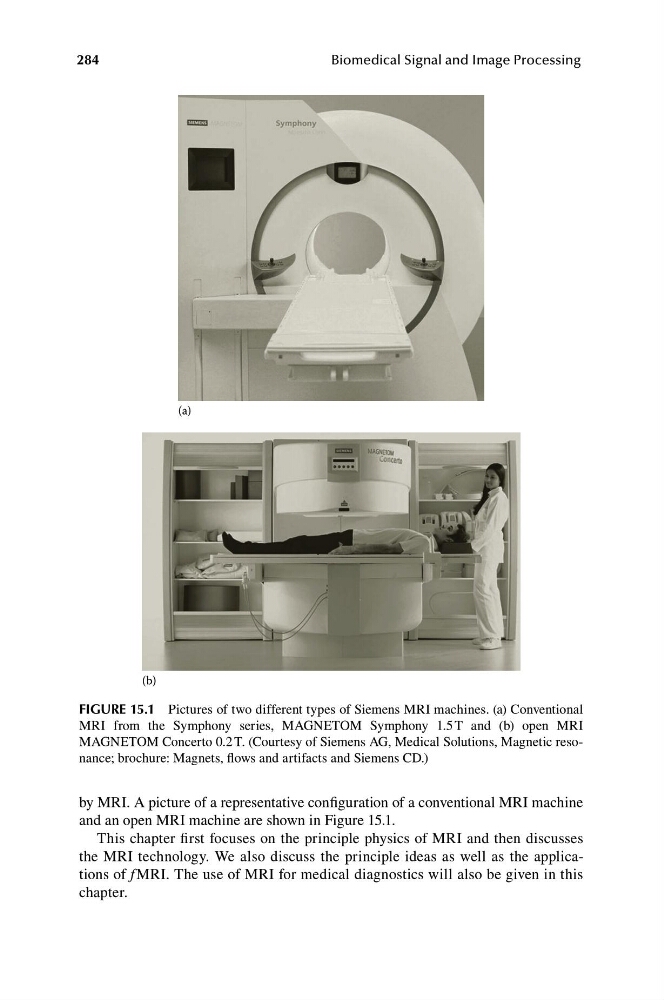

FIGURE 15.1 Pictures of two different types of Siemens MRI machines. (a) Conventional
MRI from the Symphony series, MAGNETOM Symphony 1.5 T and (b) open MRI
MAGNETOM Concerto 0.2 T. (Courtesy of Siemens AG, Medical Solutions, Magnetic resonance; brochure: Magnets, flows and artifacts and Siemens CD.)
by MRI. A picture of a representative configuration of a conventional MRI machine
and an open MRI machine are shown in Figure 15.1.
This chapter first focuses on the principle physics of MRI and then discusses
the MRI technology. We also discuss the principle ideas as well as the applications of f MRI. The use of MRI for medical diagnostics will also be given in this
chapter.
