Appendix: Interphase Dimension Measurement Via AFM
173

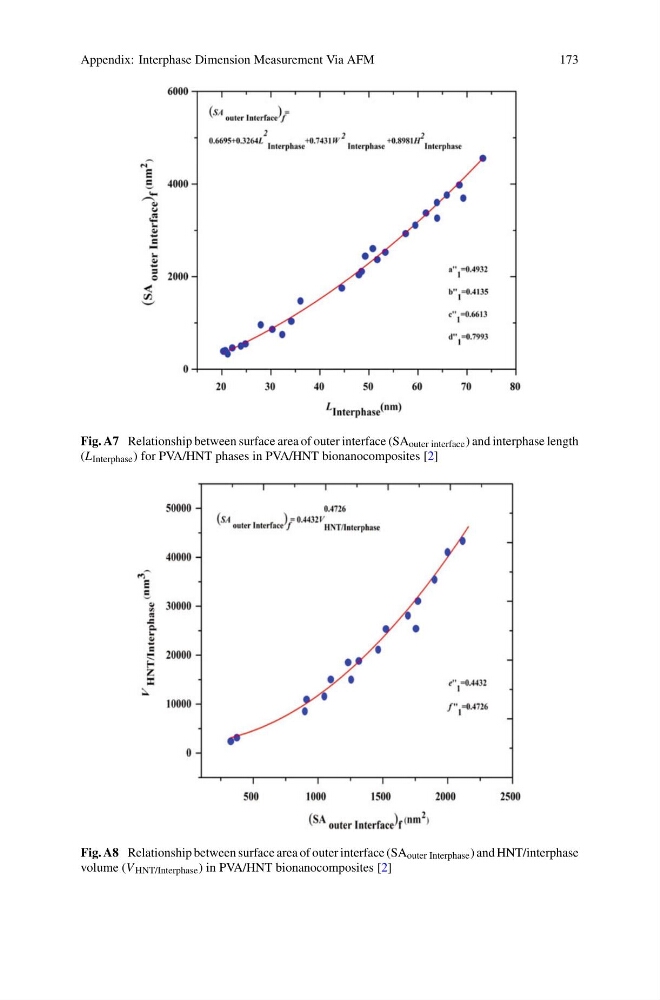

Fig. A7 Relationship between surface area of outer interface (SA outer interface ) and interphase length
(L Interphase ) for PVA/HNT phases in PVA/HNT bionanocomposites [2]
Fig. A8 Relationship between surface area of outer interface (SA outer Interphase ) and HNT/interphase
volume (V HNT/Interphase ) in PVA/HNT bionanocomposites [2]
