5 3D Interphase of PVA Bionanocomposite Films

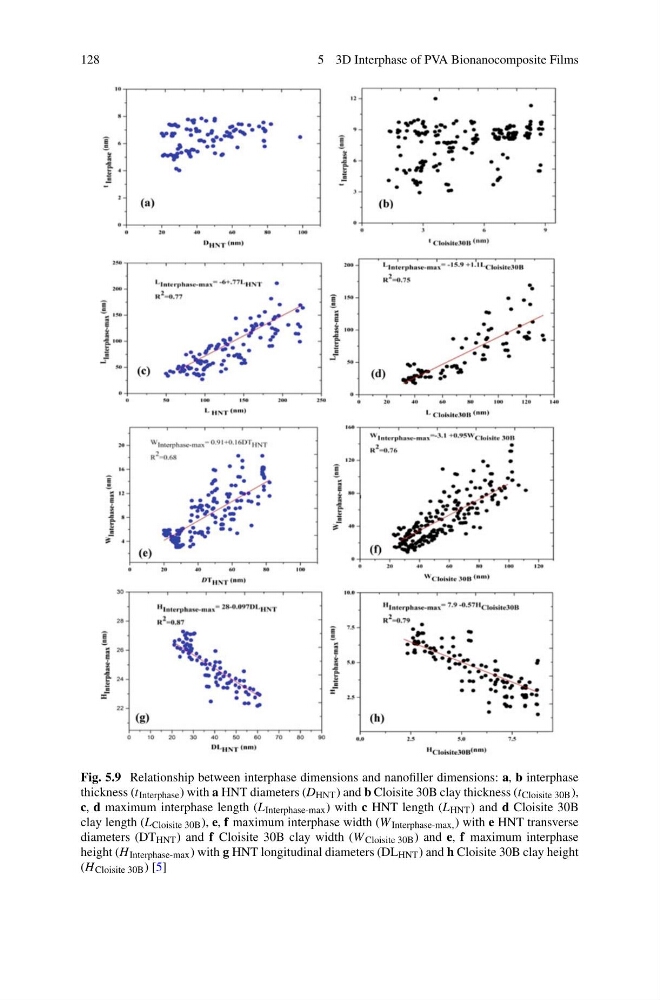

Fig. 5.9 Relationship between interphase dimensions and nanofiller dimensions: a, b interphase
thickness (t Interphase ) with a HNT diameters (D HNT ) and b Cloisite 30B clay thickness (t Cloisite 30B ),
c, d maximum interphase length (L Interphase-max ) with c HNT length (L HNT ) and d Cloisite 30B
clay length (L Cloisite 30B ), e, f maximum interphase width (W Interphase-max, ) with e HNT transverse
diameters (DT HNT ) and f Cloisite 30B clay width (W Cloisite 30B ) and e, f maximum interphase
height (H Interphase-max ) with g HNT longitudinal diameters (DL HNT ) and h Cloisite 30B clay height
(H Cloisite 30B ) [5]
