etc., N is the chelating agent nitrogen x = 2 or 4 or 2 + 2, C is generally sp
2 carbon)
(see Fig. 4.34).
Li et al. [213] designed and synthesized an efficient and stable non-precious metal
ORR catalyst (Fe-SPc) based on iron phtalocyanine. This Fe-SPc is prepared by a
non-pyrolytic method so that its surface properties derived from the structure and
material can be appropriately adjusted. Fe-SPc has an initial ORR activity equivalent
to that of commercial Fe-Pc, but after 10 cycles of scanning, the current density of
Fe-SPc is 4.6 times that of Fe-Pc, and after 100 cycles of scanning, the current

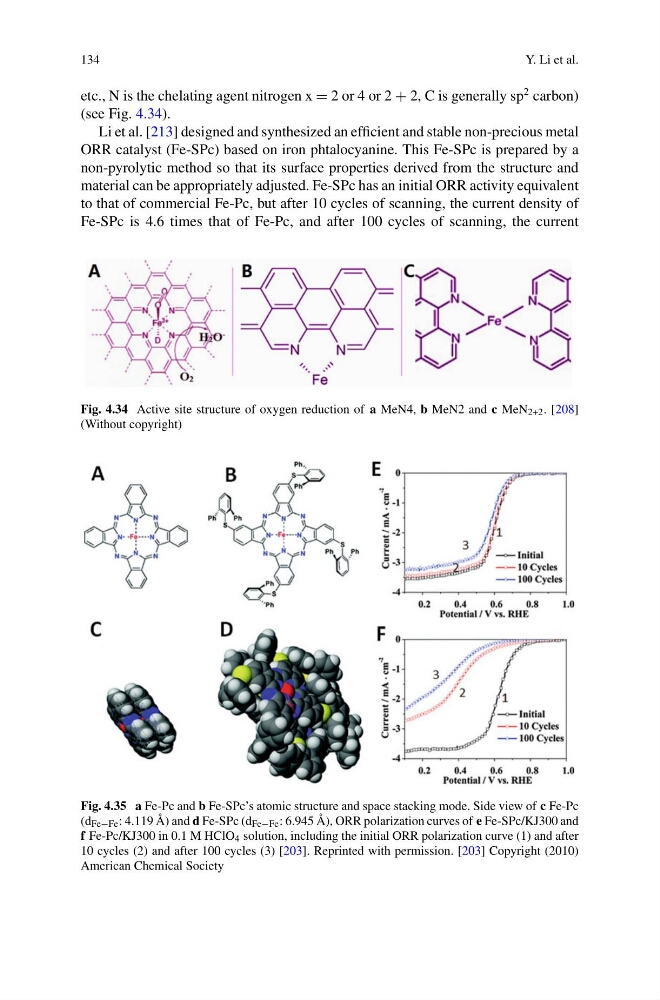

Fig. 4.34 Active site structure of oxygen reduction of a MeN4, b MeN2 and c MeN 2+2 . [208]
(Without copyright)
Fig. 4.35 a Fe-Pc and b Fe-SPc’s atomic structure and space stacking mode. Side view of c Fe-Pc
(d Fe−Fe : 4.119 Å) and d Fe-SPc (d Fe−Fe : 6.945 Å), ORR polarization curves of e Fe-SPc/KJ300 and
f Fe-Pc/KJ300 in 0.1 M HClO 4 solution, including the initial ORR polarization curve (1) and after
10 cycles (2) and after 100 cycles (3) [203]. Reprinted with permission. [203] Copyright (2010)
American Chemical Society
