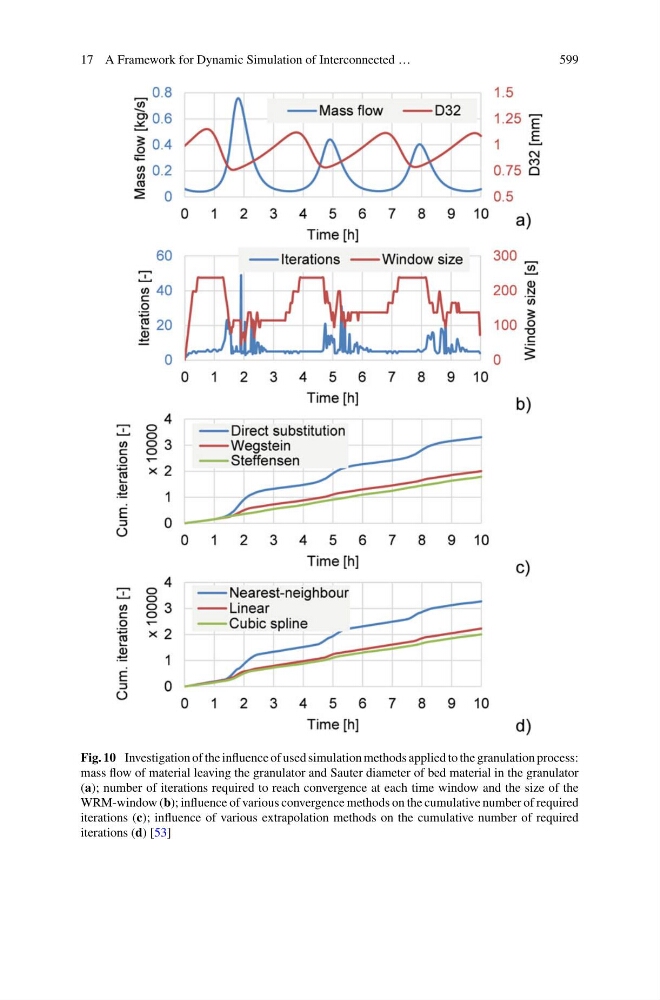

Fig. 10 Investigation of the influence of used simulation methods applied to the granulation process:
mass flow of material leaving the granulator and Sauter diameter of bed material in the granulator
(a); number of iterations required to reach convergence at each time window and the size of the
WRM-window (b); influence of various convergence methods on the cumulative number of required
iterations (c); influence of various extrapolation methods on the cumulative number of required
iterations (d) [53]
