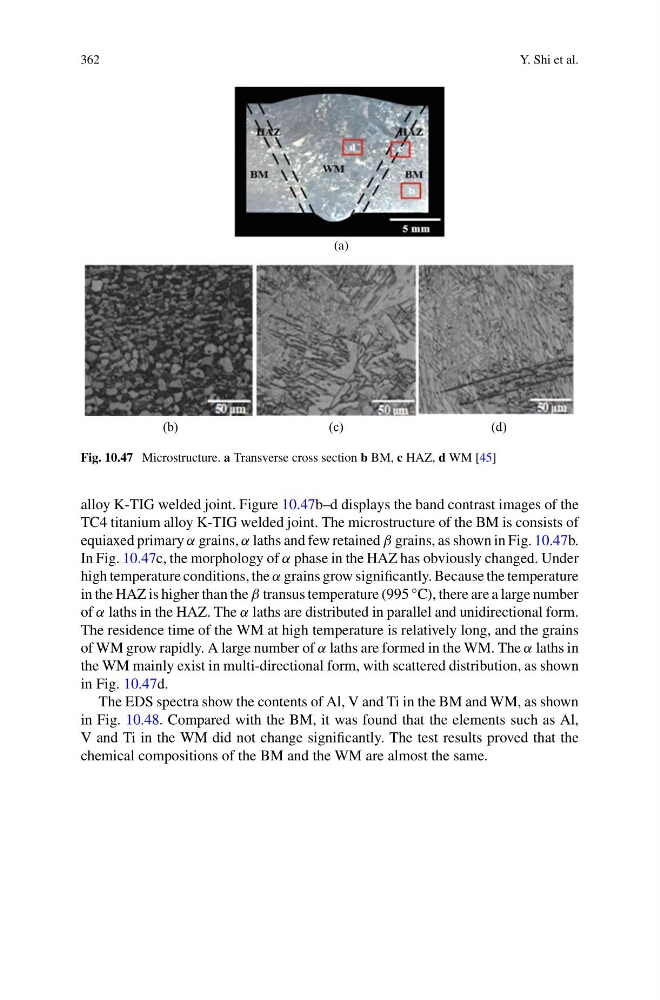

Fig. 10.47 Microstructure. a Transverse cross section b BM, c HAZ, d WM [45]
alloy K-TIG welded joint. Figure 10.47b–d displays the band contrast images of the
TC4 titanium alloy K-TIG welded joint. The microstructure of the BM is consists of
equiaxed primary α grains, α laths and few retained β grains, as shown in Fig. 10.47b.
In Fig. 10.47c, the morphology of α phase in the HAZ has obviously changed. Under
high temperature conditions, the α grains grow significantly. Because the temperature
in the HAZ is higher than the β transus temperature (995 °C), there are a large number
of α laths in the HAZ. The α laths are distributed in parallel and unidirectional form.
The residence time of the WM at high temperature is relatively long, and the grains
of WM grow rapidly. A large number of α laths are formed in the WM. The α laths in
the WM mainly exist in multi-directional form, with scattered distribution, as shown
in Fig. 10.47d.
The EDS spectra show the contents of Al, V and Ti in the BM and WM, as shown
in Fig. 10.48. Compared with the BM, it was found that the elements such as Al,
V and Ti in the WM did not change significantly. The test results proved that the
chemical compositions of the BM and the WM are almost the same.
