338
Y. Shi et al.

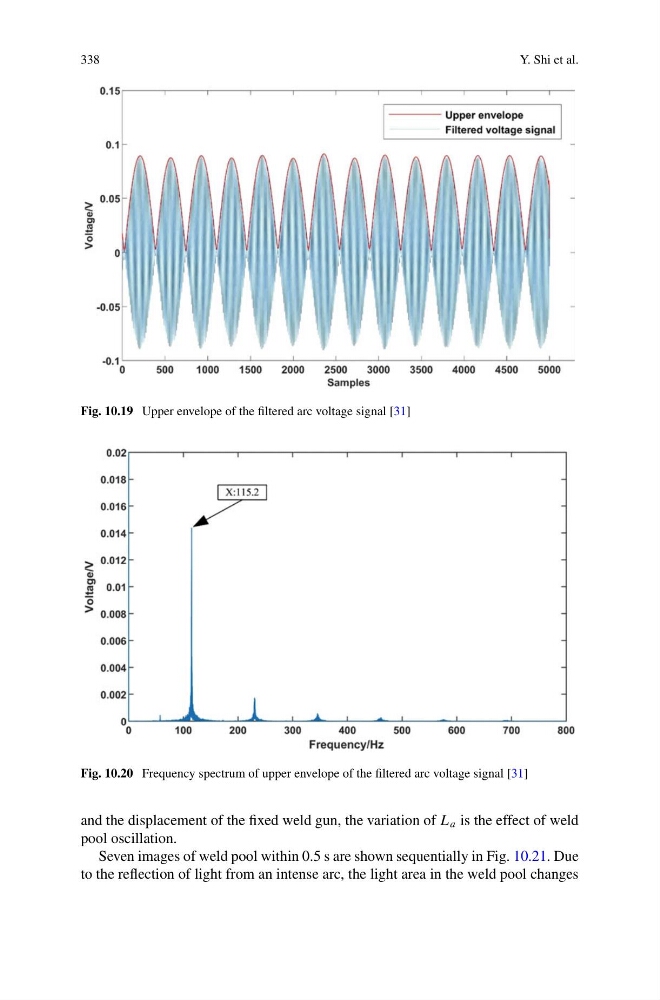

Fig. 10.19 Upper envelope of the filtered arc voltage signal [31]
Fig. 10.20 Frequency spectrum of upper envelope of the filtered arc voltage signal [31]
and the displacement of the fixed weld gun, the variation of L a is the effect of weld
pool oscillation.
Seven images of weld pool within 0.5 s are shown sequentially in Fig. 10.21. Due
to the reflection of light from an intense arc, the light area in the weld pool changes
