Case (ii) Along the side x = L, the normal forces consist of two parts, one following
a linear law and the other following the law of a cubic parabola. The shearing forces
are proportional to x on the longitudinal sides of the beam and follow a parabolic
law along the side x = L.
The distribution of the stresses for Case (i) and Case (ii) is shown in Fig. 5.7.

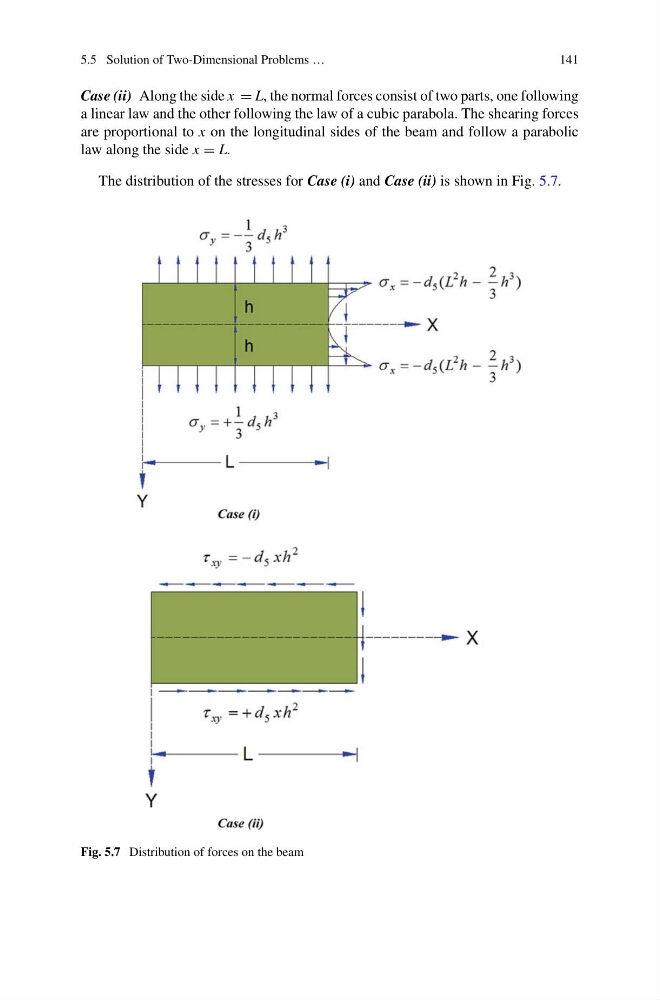

Fig. 5.7 Distribution of forces on the beam
