66
3 Subsonic Wind Tunnels

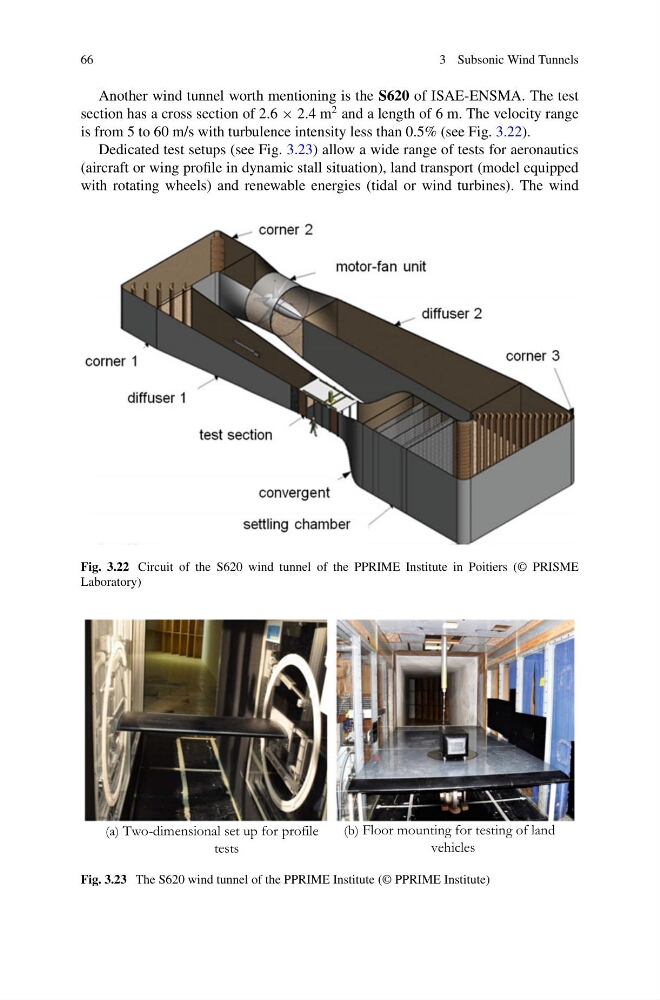

Another wind tunnel worth mentioning is the S620 of ISAE-ENSMA. The test
section has a cross section of 2.6 × 2.4 m
2 and a length of 6 m. The velocity range
is from 5 to 60 m/s with turbulence intensity less than 0.5% (see Fig. 3.22).
Dedicated test setups (see Fig. 3.23) allow a wide range of tests for aeronautics
(aircraft or wing profile in dynamic stall situation), land transport (model equipped
with rotating wheels) and renewable energies (tidal or wind turbines). The wind
Fig. 3.22 Circuit of the S620 wind tunnel of the PPRIME Institute in Poitiers (© PRISME
Laboratory)
(a) Two-dimensional set up for profile
tests
(b) Floor mounting for testing of land
vehicles
Fig. 3.23 The S620 wind tunnel of the PPRIME Institute (© PPRIME Institute)
