6.5 Methods for Restoring Electrical Circuit …
579

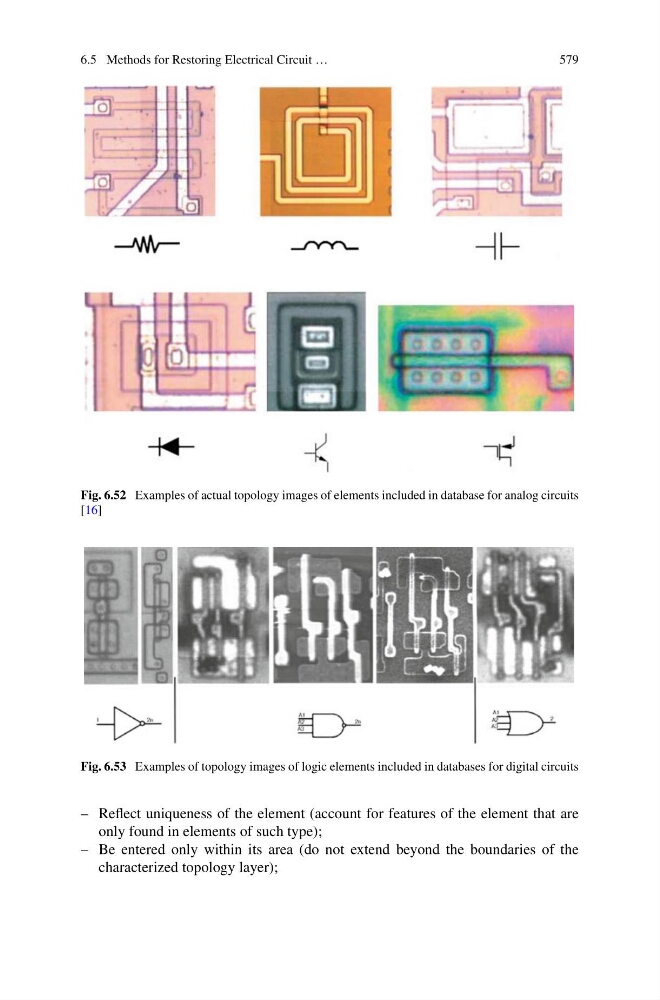

Fig. 6.52 Examples of actual topology images of elements included in database for analog circuits
[16]
Fig. 6.53 Examples of topology images of logic elements included in databases for digital circuits
– Reflect uniqueness of the element (account for features of the element that are
only found in elements of such type);
– Be entered only within its area (do not extend beyond the boundaries of the
characterized topology layer);
