6.4 Complex Methodology for Reverse Engineering …
567

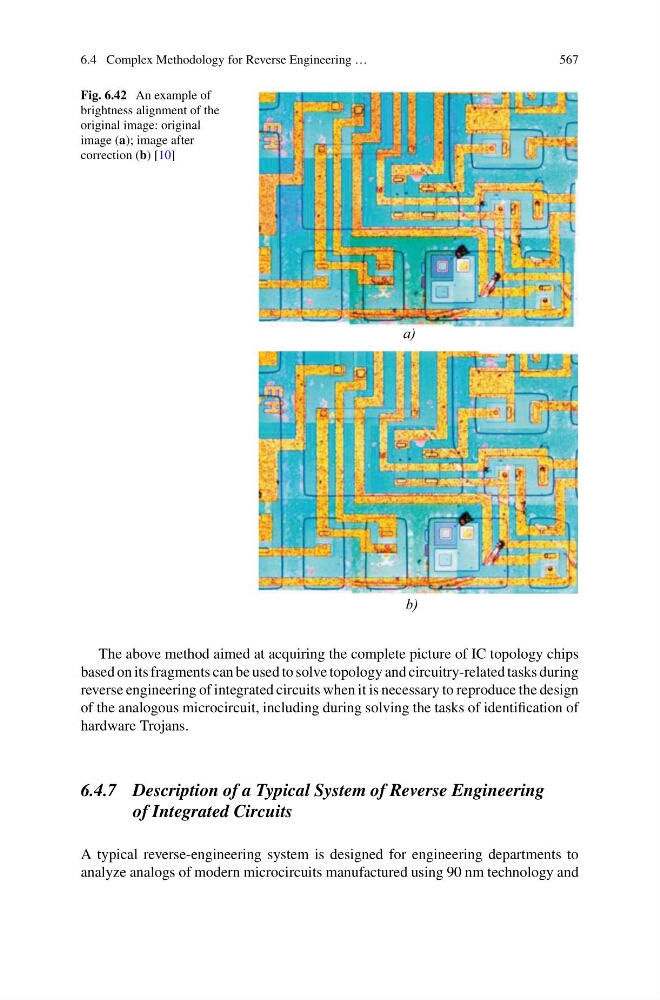

Fig. 6.42 An example of
brightness alignment of the
original image: original
image (a); image after
correction (b) [10]
a)
b)
The above method aimed at acquiring the complete picture of IC topology chips
based on its fragments can be used to solve topology and circuitry-related tasks during
reverse engineering of integrated circuits when it is necessary to reproduce the design
of the analogous microcircuit, including during solving the tasks of identification of
hardware Trojans.
6.4.7 Description of a Typical System of Reverse Engineering
of Integrated Circuits
A typical reverse-engineering system is designed for engineering departments to
analyze analogs of modern microcircuits manufactured using 90 nm technology and
567
Fig. 6.42 An example of
brightness alignment of the
original image: original
image (a); image after
correction (b) [10]
a)
b)
The above method aimed at acquiring the complete picture of IC topology chips
based on its fragments can be used to solve topology and circuitry-related tasks during
reverse engineering of integrated circuits when it is necessary to reproduce the design
of the analogous microcircuit, including during solving the tasks of identification of
hardware Trojans.
6.4.7 Description of a Typical System of Reverse Engineering
of Integrated Circuits
A typical reverse-engineering system is designed for engineering departments to
analyze analogs of modern microcircuits manufactured using 90 nm technology and
