8MB NOR Multi-purpose flash device for
immediate messaging and notification of
presence according to the SIP standard
National (local) reducing
switch regulator
Apple (Wolfson) audio
codec - TI production
256MB memory module Qimonda,
SDR Extended temporary mobile DRAM
Samsung S5L8701 DSP with ARM
core + Flash Memory Controller
USB Power Manager with
linear technology
32GB Toshiba Flash Drive (x2)
with multi-level NAND cell
64GB Samsung Flash Drive with
double stack
and multi-level NAND cell
Apple Power Manager
(Philips PCF50635)

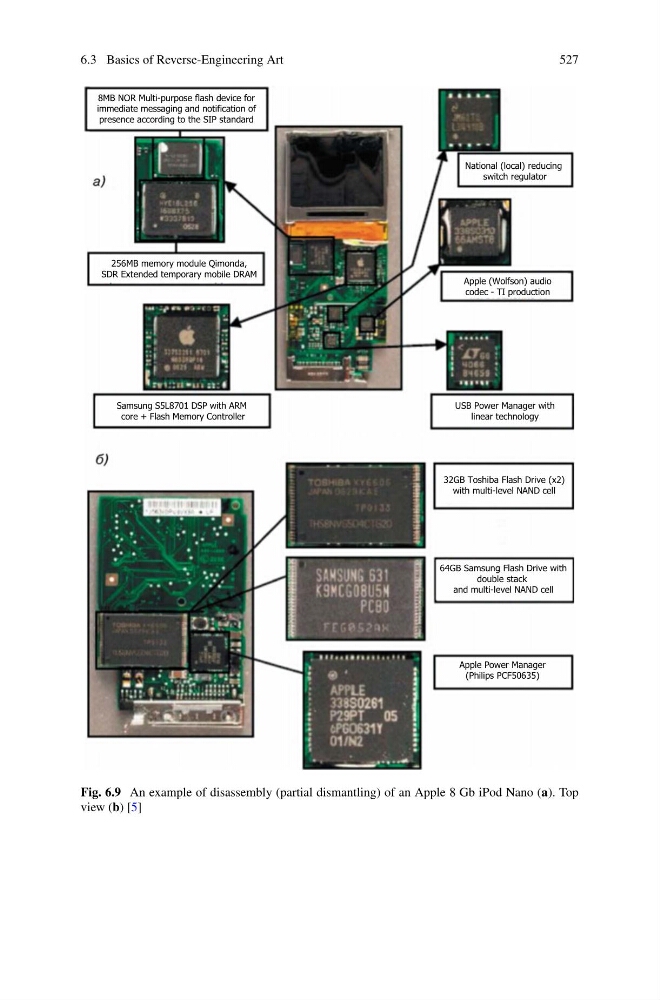

Fig. 6.9 An example of disassembly (partial dismantling) of an Apple 8 Gb iPod Nano (a). Top
view (b) [5]
