4.1 Basis of Designing Safe Electronic …
287

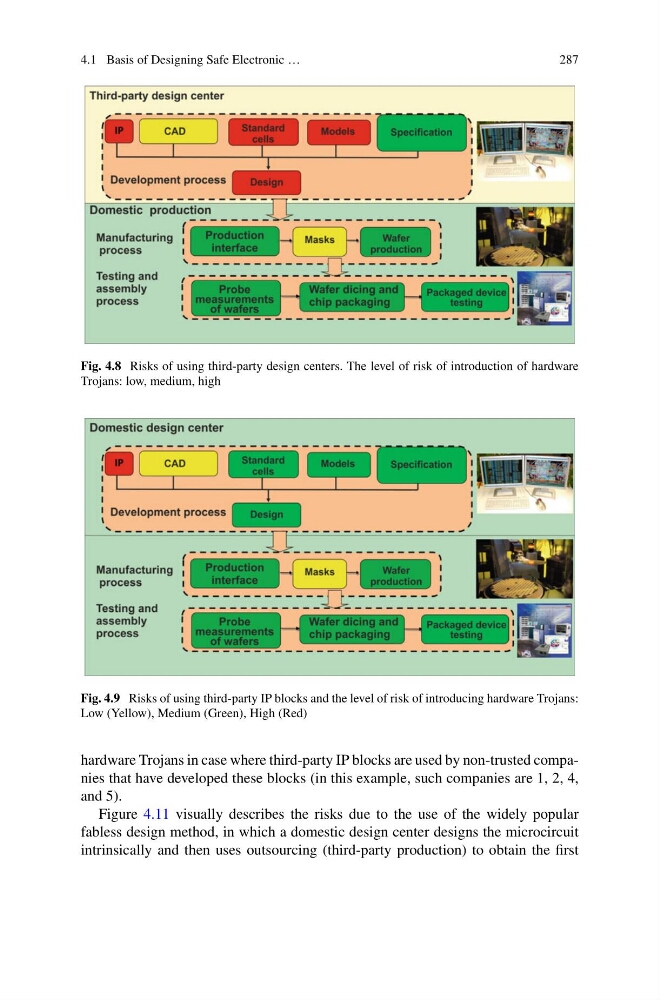

Fig. 4.8 Risks of using third-party design centers. The level of risk of introduction of hardware
Trojans: low, medium, high
Fig. 4.9 Risks of using third-party IP blocks and the level of risk of introducing hardware Trojans:
Low (Yellow), Medium (Green), High (Red)
hardware Trojans in case where third-party IP blocks are used by non-trusted companies that have developed these blocks (in this example, such companies are 1, 2, 4,
and 5).
Figure 4.11 visually describes the risks due to the use of the widely popular
fabless design method, in which a domestic design center designs the microcircuit
intrinsically and then uses outsourcing (third-party production) to obtain the first
