570
R. B. Pachori and V. Gupta

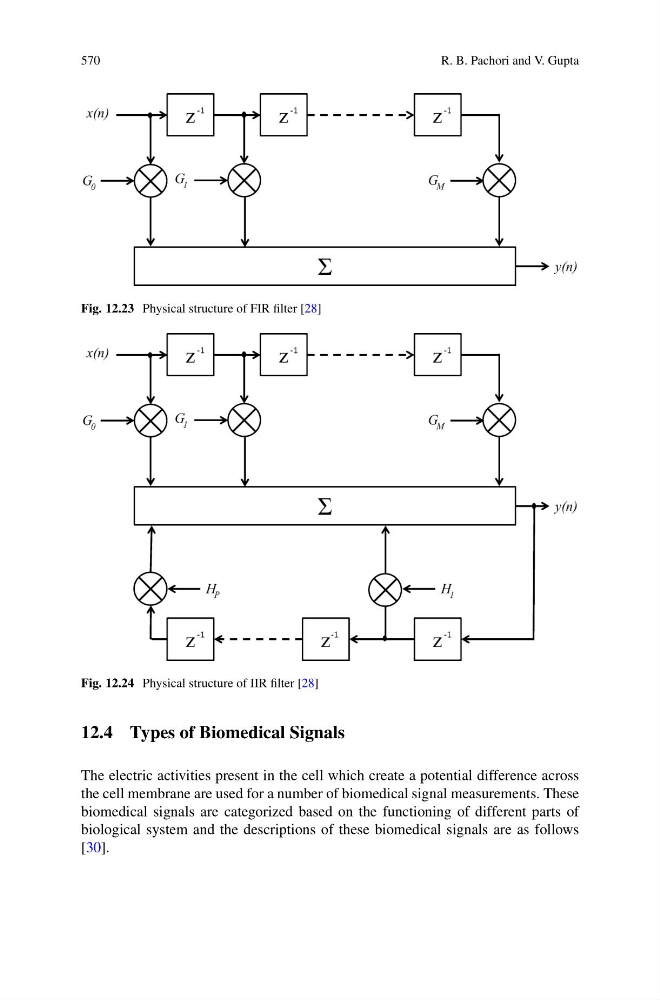

Fig. 12.23 Physical structure of FIR filter [28]
Fig. 12.24 Physical structure of IIR filter [28]
12.4 Types of Biomedical Signals
The electric activities present in the cell which create a potential difference across
the cell membrane are used for a number of biomedical signal measurements. These
biomedical signals are categorized based on the functioning of different parts of
biological system and the descriptions of these biomedical signals are as follows
[30].
