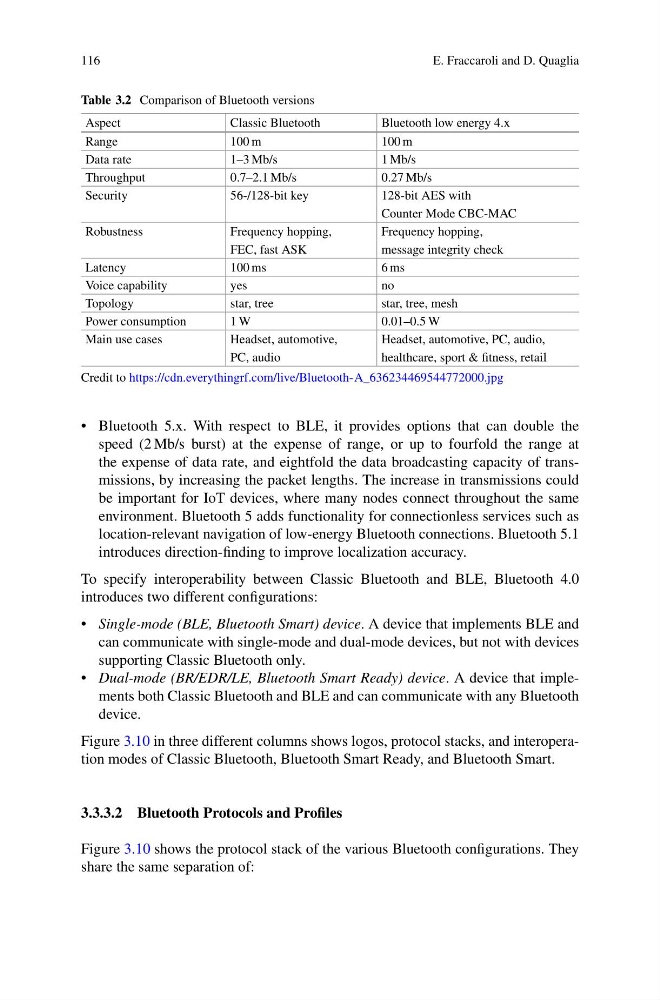

116
E. Fraccaroli and D. Quaglia
Table 3.2 Comparison of Bluetooth versions
Aspect
Classic Bluetooth
Bluetooth low energy 4.x
Range
100 m
100 m
Data rate
1–3 Mb/s
1 Mb/s
Throughput
0.7–2.1 Mb/s
0.27 Mb/s
Security
56-/128-bit key
128-bit AES with
Counter Mode CBC-MAC
Robustness
Frequency hopping,
Frequency hopping,
FEC, fast ASK
message integrity check
Latency
100 ms
6 ms
Voice capability
yes
no
Topology
star, tree
star, tree, mesh
Power consumption
1 W
0.01–0.5 W
Main use cases
Headset, automotive,
Headset, automotive, PC, audio,
PC, audio
healthcare, sport & fitness, retail
Credit to https://cdn.everythingrf.com/live/Bluetooth-A_636234469544772000.jpg
• Bluetooth 5.x. With respect to BLE, it provides options that can double the
speed (2 Mb/s burst) at the expense of range, or up to fourfold the range at
the expense of data rate, and eightfold the data broadcasting capacity of transmissions, by increasing the packet lengths. The increase in transmissions could
be important for IoT devices, where many nodes connect throughout the same
environment. Bluetooth 5 adds functionality for connectionless services such as
location-relevant navigation of low-energy Bluetooth connections. Bluetooth 5.1
introduces direction-finding to improve localization accuracy.
To specify interoperability between Classic Bluetooth and BLE, Bluetooth 4.0
introduces two different configurations:
• Single-mode (BLE, Bluetooth Smart) device. A device that implements BLE and
can communicate with single-mode and dual-mode devices, but not with devices
supporting Classic Bluetooth only.
• Dual-mode (BR/EDR/LE, Bluetooth Smart Ready) device. A device that implements both Classic Bluetooth and BLE and can communicate with any Bluetooth
device.
Figure 3.10 in three different columns shows logos, protocol stacks, and interoperation modes of Classic Bluetooth, Bluetooth Smart Ready, and Bluetooth Smart.
3.3.3.2 Bluetooth Protocols and Profiles
Figure 3.10 shows the protocol stack of the various Bluetooth configurations. They
share the same separation of:
