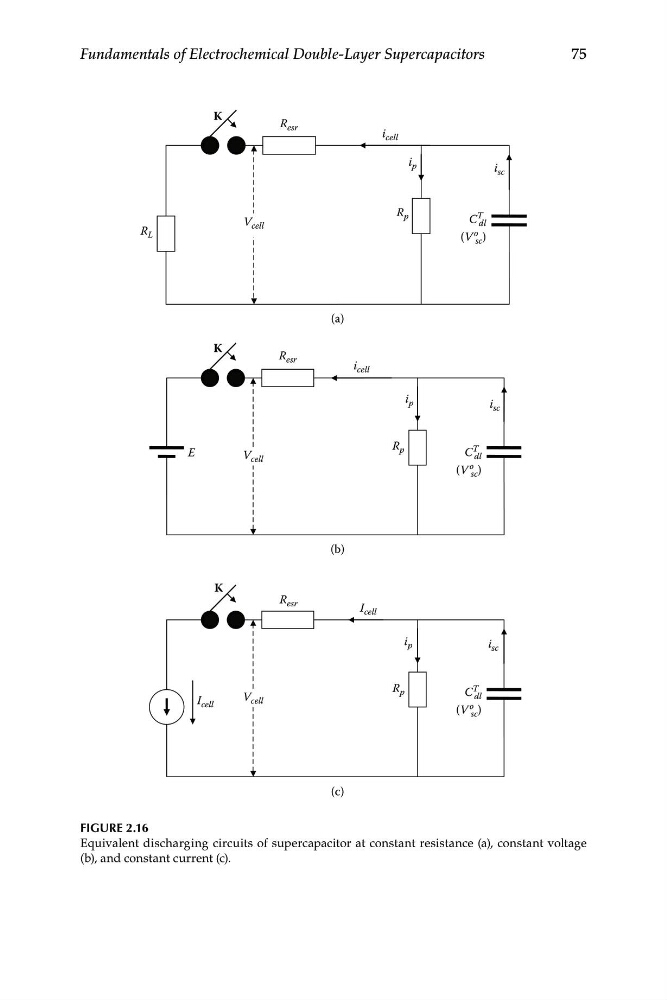

FIGURE 2.16
Equivalent discharging circuits of supercapacitor at constant resistance (a), constant voltage
(b), and constant current (c).
