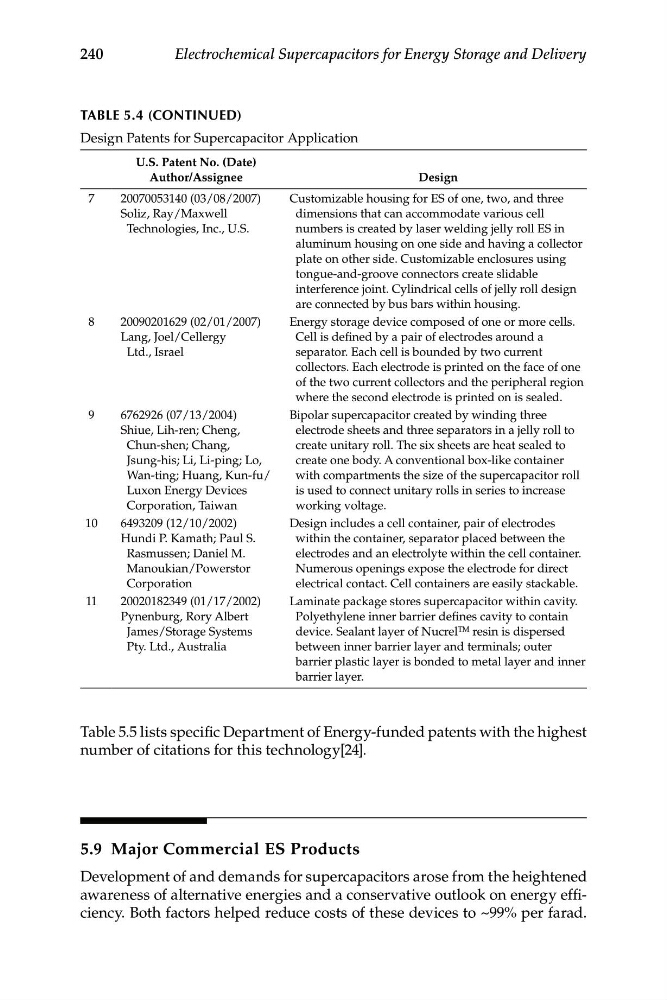

240
Electrochemical Supercapacitors for Energy Storage and Delivery
TABLE 5.4 (CONTINUED)
Design Patents for Supercapacitor Application
U.S. Patent No. (Date)
Author/Assignee
Design
7
20070053140 (03/08/2007)
Customizable housing for ES of one, two, and three
Soliz, Ray/Maxwell
dimensions that can accommodate various cell
Technologies, Inc., U.S.
numbers is created by laser welding jelly roll ES in
aluminum housing on one side and having a collector
plate on other side. Customizable enclosures using
tongue-and-groove connectors create slidable
interference joint. Cylindrical cells of jelly roll design
are connected by bus bars within housing.
8
20090201629 (02/01/2007)
Energy storage device composed of one or more cells.
Lang, Joel/Cellergy
Cell is defined by a pair of electrodes around a
Ltd., Israel
separator. Each cell is bounded by two current
collectors. Each electrode is printed on the face of one
of the two current collectors and the peripheral region
where the second electrode is printed on is sealed.
9
6762926 (07/13/2004)
Bipolar supercapacitor created by winding three
Shiue, Lih-ren; Cheng,
electrode sheets and three separators in a jelly roll to
Chun-shen; Chang,
create unitary roll. The six sheets are heat sealed to
Jsung-his; Li, Li-ping; Lo,
create one body. A conventional box-like container
Wan-ting; Huang, Kun-fu/
with compartments the size of the supercapacitor roll
Luxon Energy Devices
is used to connect unitary rolls in series to increase
Corporation, Taiwan
working voltage.
10
6493209 (12/10/2002)
Design includes a cell container, pair of electrodes
Hundi P. Kamath; Paul S.
within the container, separator placed between the
Rasmussen; Daniel M.
electrodes and an electrolyte within the cell container.
Manoukian/Powerstor
Numerous openings expose the electrode for direct
Corporation
electrical contact. Cell containers are easily stackable.
11
20020182349 (01/17/2002)
Laminate package stores supercapacitor within cavity.
Pynenburg, Rory Albert
Polyethylene inner barrier defines cavity to contain
James/Storage Systems
device. Sealant layer of Nucrel TM resin is dispersed
Pty. Ltd., Australia
between inner barrier layer and terminals; outer
barrier plastic layer is bonded to metal layer and inner
barrier layer.
Table 5.5 lists specific Department of Energy-funded patents with the highest
number of citations for this technology[24].
5.9 Major Commercial ES Products
Development of and demands for supercapacitors arose from the heightened
awareness of alternative energies and a conservative outlook on energy efficiency. Both factors helped reduce costs of these devices to ~99% per farad.
