19 Kryptoracemates
391

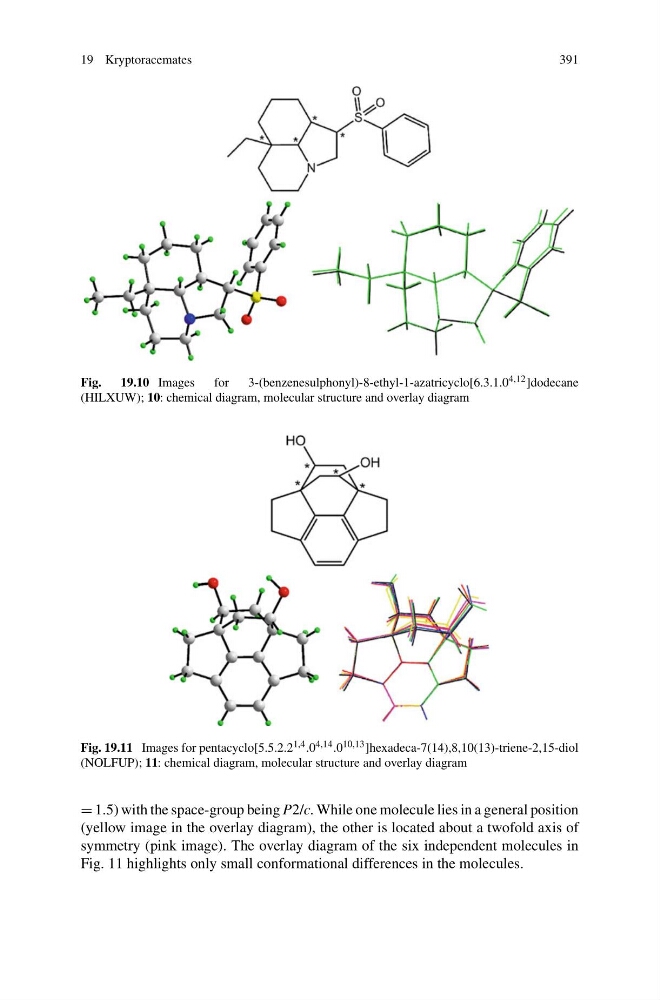

Fig.
19.10 Images
for
3-(benzenesulphonyl)-8-ethyl-1-azatricyclo[6.3.1.0 4,12 ]dodecane
(HILXUW); 10: chemical diagram, molecular structure and overlay diagram
Fig. 19.11 Images for pentacyclo[5.5.2.2 1,4 .0 4,14 .0 10,13 ]hexadeca-7(14),8,10(13)-triene-2,15-diol
(NOLFUP); 11: chemical diagram, molecular structure and overlay diagram
= 1.5) with the space-group being P2/c. While one molecule lies in a general position
(yellow image in the overlay diagram), the other is located about a twofold axis of
symmetry (pink image). The overlay diagram of the six independent molecules in
Fig. 11 highlights only small conformational differences in the molecules.
