Xauen seamounts, which are three aligned antiforms (Bourgois et al. 1992; Martínez-García et al. 2011, 2013; Estrada et al. 2018), and the Campo de Dalias folds
(Pedrera et al. 2015) (Figs. 6.7 and 6.8a, b). These last folds form three smooth,
elongate elevations (N50-60), located to the W of Chella Bank, which are 15–20 km
long and 30–80 m high (Vázquez et al. 2016). They are interpreted as anticlines
associated with blind thrusts affecting the recent sediments.
Faults are grouped into two main sets of N25
E sinistral and N130
E dextral
kinematics (Fig. 6.7). Fault traces are evidenced in the seafloor by different features

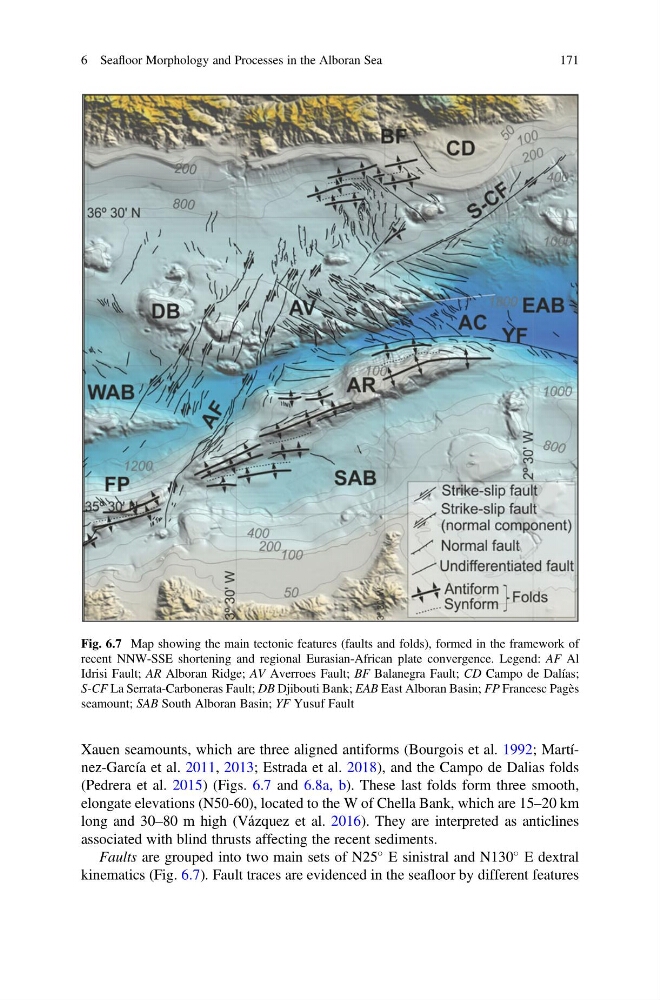

Fig. 6.7 Map showing the main tectonic features (faults and folds), formed in the framework of
recent NNW-SSE shortening and regional Eurasian-African plate convergence. Legend: AF Al
Idrisi Fault; AR Alboran Ridge; AV Averroes Fault; BF Balanegra Fault; CD Campo de Dalías;
S-CF La Serrata-Carboneras Fault; DB Djibouti Bank; EAB East Alboran Basin; FP Francesc Pagès
seamount; SAB South Alboran Basin; YF Yusuf Fault
6 Seafloor Morphology and Processes in the Alboran Sea
171
