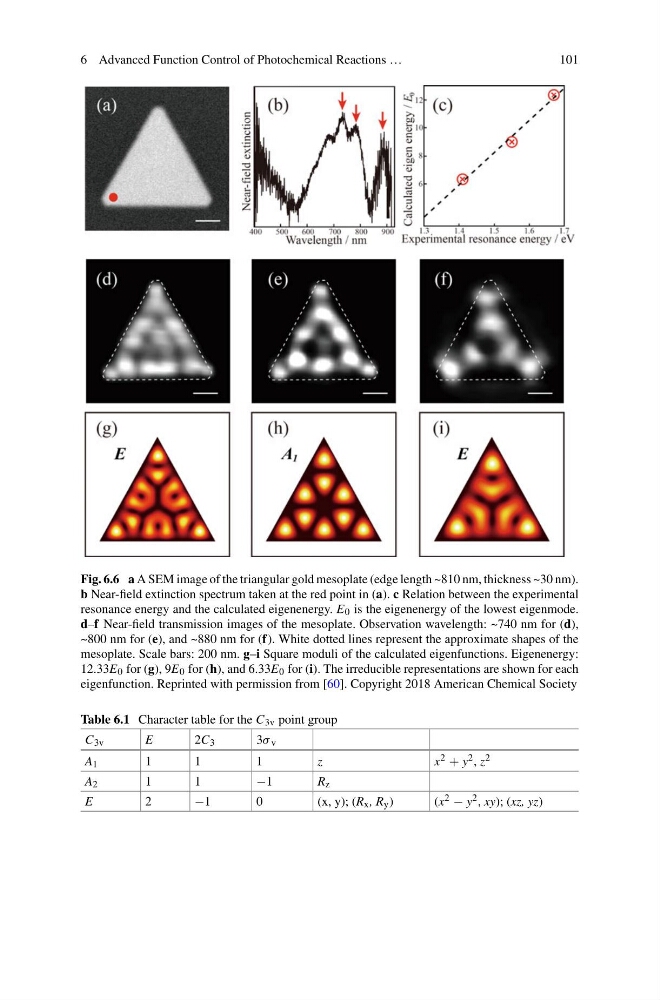

Fig. 6.6 a A SEM image of the triangular gold mesoplate (edge length ~810 nm, thickness ~30 nm).
b Near-field extinction spectrum taken at the red point in (a). c Relation between the experimental
resonance energy and the calculated eigenenergy. E 0 is the eigenenergy of the lowest eigenmode.
d–f Near-field transmission images of the mesoplate. Observation wavelength: ~740 nm for (d),
~800 nm for (e), and ~880 nm for (f). White dotted lines represent the approximate shapes of the
mesoplate. Scale bars: 200 nm. g–i Square moduli of the calculated eigenfunctions. Eigenenergy:
12.33E 0 for (g), 9E 0 for (h), and 6.33E 0 for (i). The irreducible representations are shown for each
eigenfunction. Reprinted with permission from [60]. Copyright 2018 American Chemical Society
Table 6.1 Character table for the C 3v point group
C 3v
E
2C 3
3σ v
A 1
1
1
1
z
x 2 + y 2 , z 2
A 2
1
1
−1
R z
E
2
−1
0
(x, y); (R x , R y )
(x 2 − y 2 , xy); (xz, yz)
