installed capacity of the power station is 3 kW, and the diameter of the symmetrical
wing turbine is 0.8 M. During the eighth five-year plan period, with the support of
the State Science and Technology Commission, 20 kW coastal power station and
5 kW backbend floating wave power generation device were developed by
Guangzhou Institute of Energy of Chinese Academy of Sciences and Tianjin
Institute of Marine Technology of the State Oceanic Administration, respectively.
All of them were successfully tested, as shown in Figs. 14.19, 14.20, 14.21, 14.22,
and 14.23. The National Ocean Technology Center has built 8 kW and 30 kW
pendulum wave experimental power stations in Daguan Island, Qingdao, Shandong
Province.
Guangzhou Energy Research Institute of Chinese Academy of Sciences has
developed an independent and stable wave power generation system. On January 9,

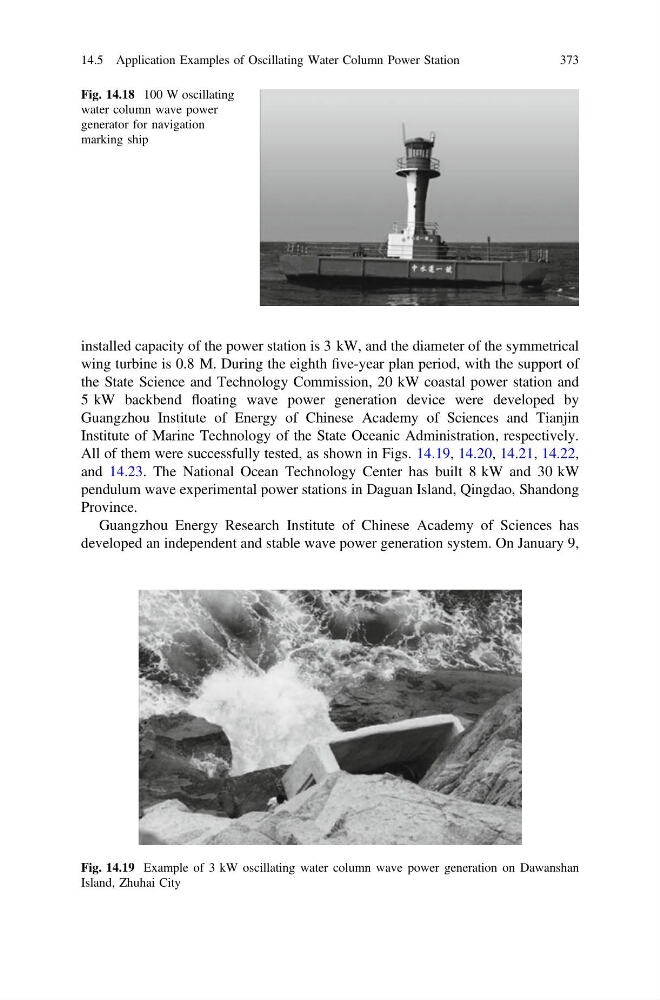

Fig. 14.18 100 W oscillating
water column wave power
generator for navigation
marking ship
Fig. 14.19 Example of 3 kW oscillating water column wave power generation on Dawanshan
Island, Zhuhai City
14.5 Application Examples of Oscillating Water Column Power Station
373
