rudder deviation motion be smooth without blocking, the waveform be not distorted, and the phase shift be within a certain range. At the same time, the polarity
of loading can be changed, the assistant moment can be generated to simulate the
counter-maneuvering state, and the anti-counter maneuvering ability of rudder
system can be tested by using the parameters of ballistic characteristic points at
subsonic and transonic speeds. It should satisfy all the requirements of the loop
characteristics of control system.
(3) Vibration Modal Characteristic Test of Control Execution System
The rudder control system and the missile-borne hydraulic energy are in the working
state. The steering surface is clamped at zero position by the input return-to-zero
signal of the integrated amplifier. The wideband electromagnetic exciter is used to
excite the rudder surface. The displacement or velocity of each characteristic point
on the rudder surface is measured by a precise sensor. The natural frequencies and
modes of the rudder surface are obtained, and the torsion-bending frequency ratio is
determined, which provides a basis for the analysis of rudder control flutter. At the
same time, the frequency response characteristics of high-speed rotating components
of missile-borne energy, such as turbines, generators, and hydraulic pumps, can be
measured by vibration spectrum analysis.
Stage I
Stage II
Full-missile
power grid
Seeker antenna
servo system
Ground launch
and control
system
Air rudder
servo system
Gas rudder
servo system
Power
combination
Electro-hydraulic
servo valve
Hydraulic
relay
Electro-hydraulic servo
valve
Hydraulic
rudder lock
Electro-hydraulic servo
valve
Secondary
hydraulic energy
Flow limit
valve
Electromagnetic
hydraulic switch
Inter-stage
separation joint
Primary
hydraulic energy
Power source
energy combination
Hydraulic
loading valve
Adjustable pressure
gas generator
Turbine
reducer
Alternator Hydraulic
piston pump
Self-pressurized
oil tank

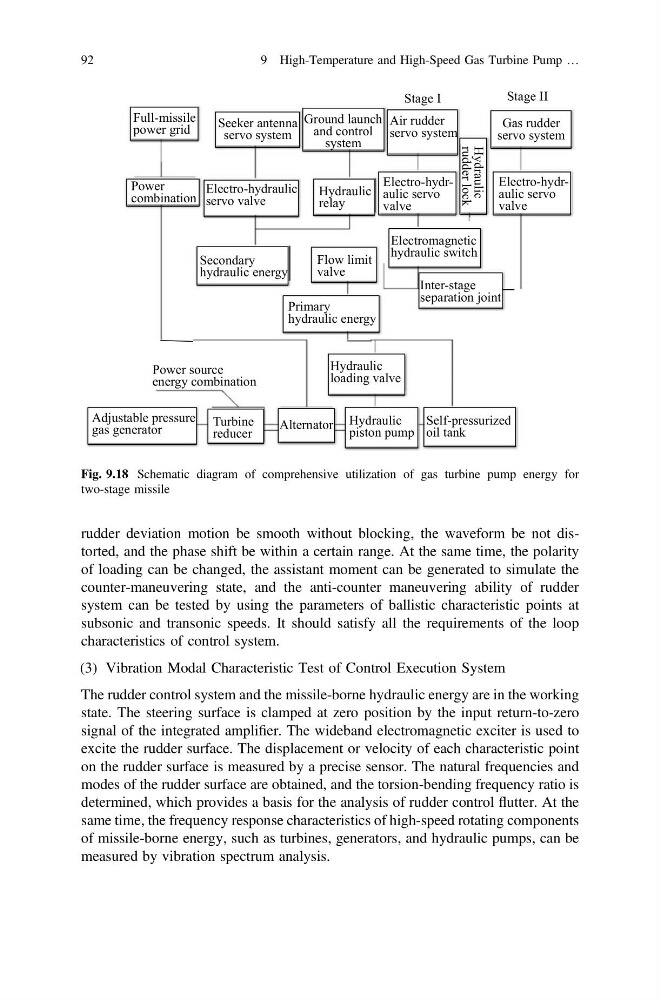

Fig. 9.18 Schematic diagram of comprehensive utilization of gas turbine pump energy for
two-stage missile
92
