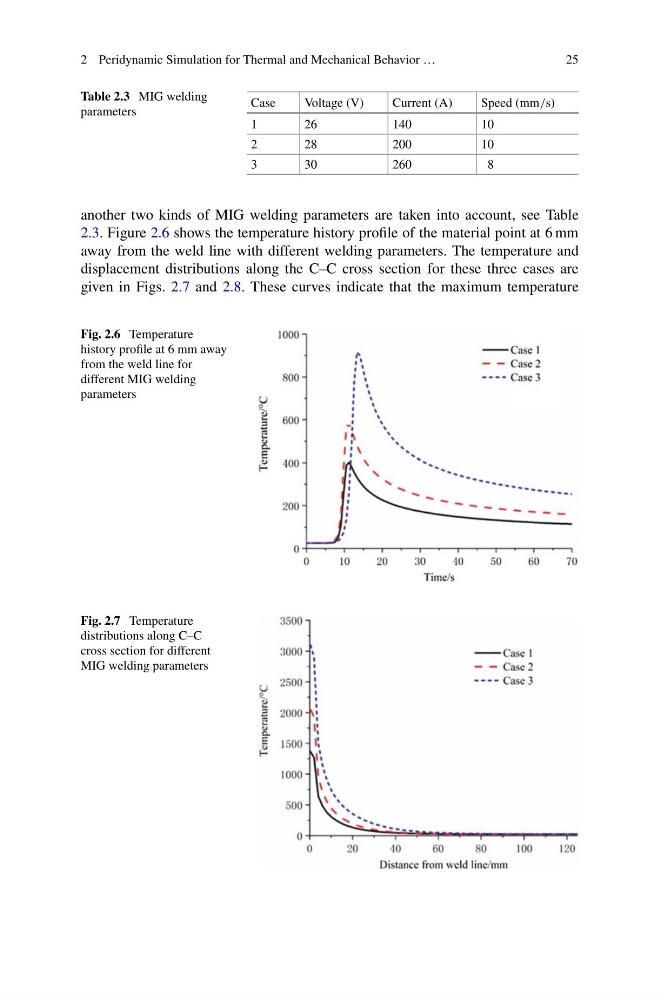

2 Peridynamic Simulation for Thermal and Mechanical Behavior …
25
Table 2.3 MIG welding
parameters
Case
Voltage (V)
Current (A)
Speed (mm/s)
1
26
140
10
2
28
200
10
3
30
260
8
another two kinds of MIG welding parameters are taken into account, see Table
2.3. Figure 2.6 shows the temperature history profile of the material point at 6 mm
away from the weld line with different welding parameters. The temperature and
displacement distributions along the C–C cross section for these three cases are
given in Figs. 2.7 and 2.8. These curves indicate that the maximum temperature
Fig. 2.6 Temperature
history profile at 6 mm away
from the weld line for
different MIG welding
parameters
Fig. 2.7 Temperature
distributions along C–C
cross section for different
MIG welding parameters
