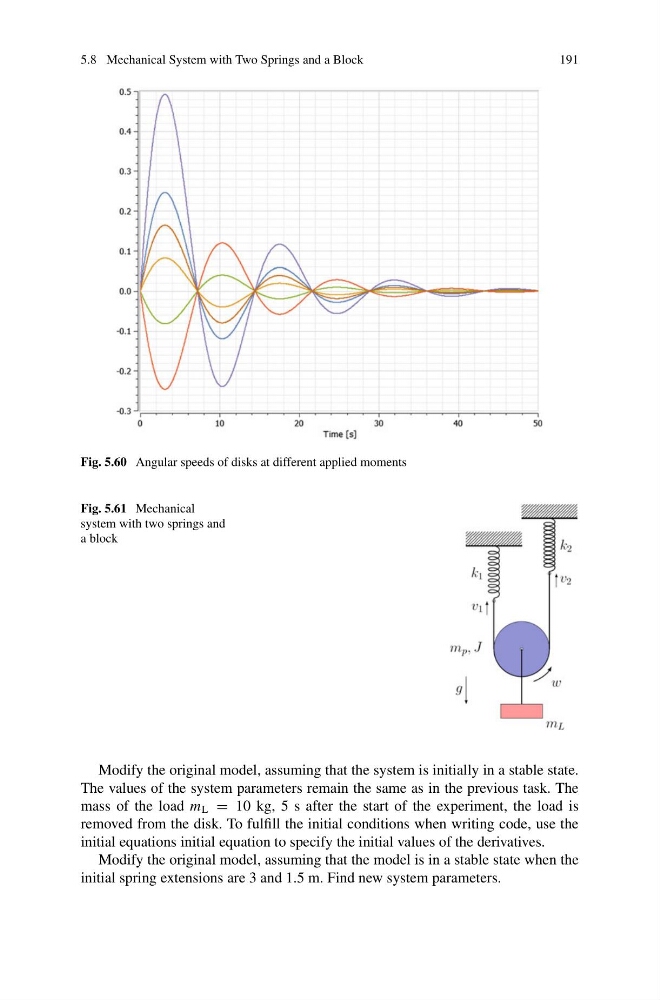

5.8 Mechanical System with Two Springs and a Block
191
Fig. 5.60 Angular speeds of disks at different applied moments
Fig. 5.61 Mechanical
system with two springs and
a block
Modify the original model, assuming that the system is initially in a stable state.
The values of the system parameters remain the same as in the previous task. The
mass of the load m L = 10 kg, 5 s after the start of the experiment, the load is
removed from the disk. To fulfill the initial conditions when writing code, use the
initial equations initial equation to specify the initial values of the derivatives.
Modify the original model, assuming that the model is in a stable state when the
initial spring extensions are 3 and 1.5 m. Find new system parameters.
