5.2 Mechanical System with Damper and Spring
157

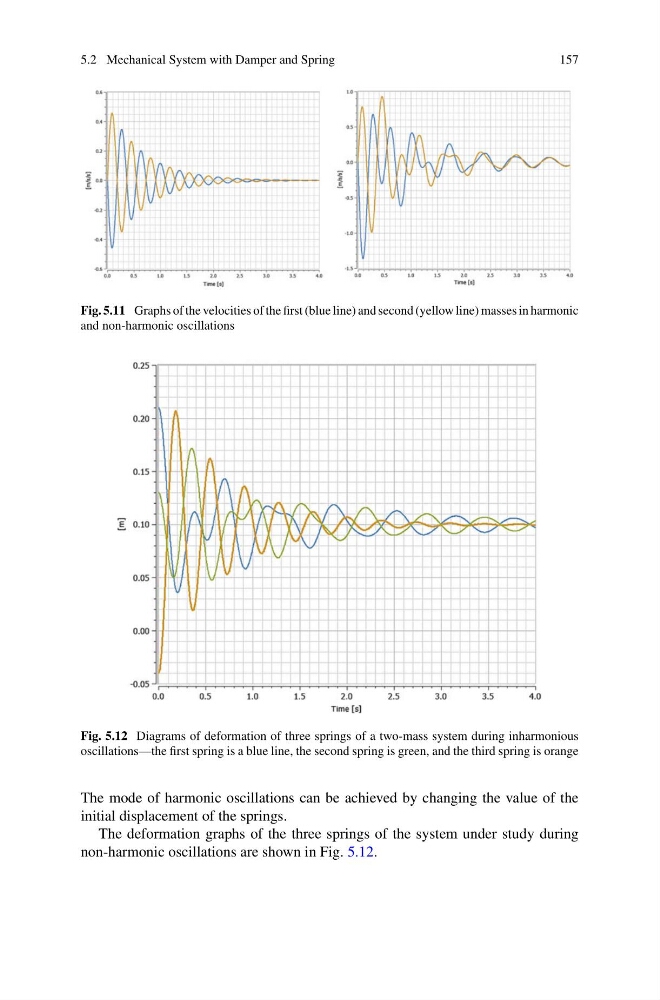

Fig. 5.11 Graphs of the velocities of the first (blue line) and second (yellow line) masses in harmonic
and non-harmonic oscillations
Fig. 5.12 Diagrams of deformation of three springs of a two-mass system during inharmonious
oscillations—the first spring is a blue line, the second spring is green, and the third spring is orange
The mode of harmonic oscillations can be achieved by changing the value of the
initial displacement of the springs.
The deformation graphs of the three springs of the system under study during
non-harmonic oscillations are shown in Fig. 5.12.
