SAGRO-Lite: A Light Weight Agent Based Semantic Model …
281

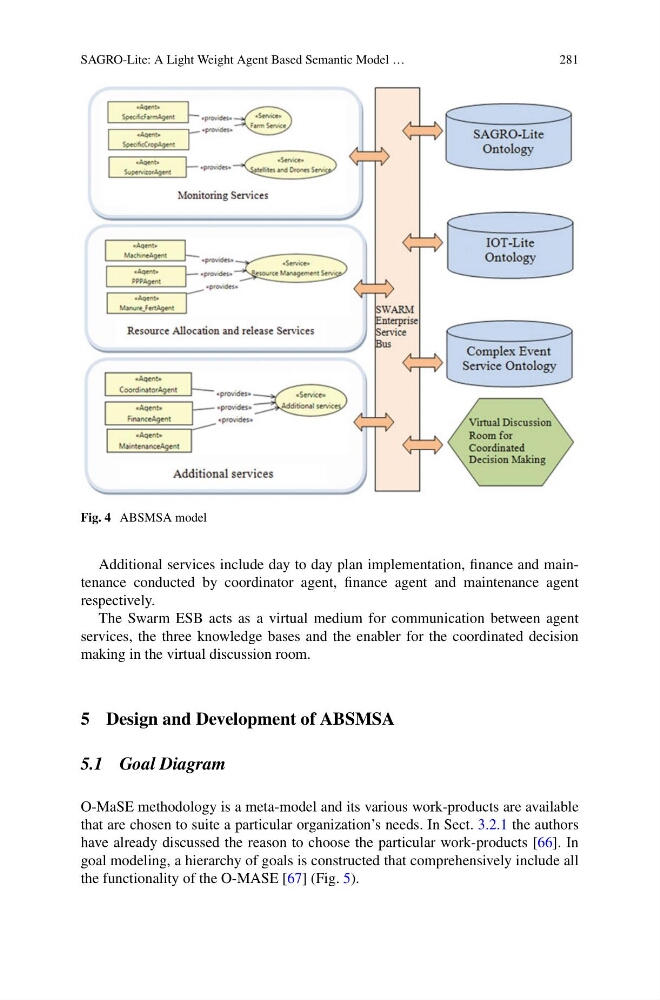

Fig. 4 ABSMSA model
Additional services include day to day plan implementation, finance and maintenance conducted by coordinator agent, finance agent and maintenance agent
respectively.
The Swarm ESB acts as a virtual medium for communication between agent
services, the three knowledge bases and the enabler for the coordinated decision
making in the virtual discussion room.
5 Design and Development of ABSMSA
5.1 Goal Diagram
O-MaSE methodology is a meta-model and its various work-products are available
that are chosen to suite a particular organization’s needs. In Sect. 3.2.1 the authors
have already discussed the reason to choose the particular work-products [66]. In
goal modeling, a hierarchy of goals is constructed that comprehensively include all
the functionality of the O-MASE [67] (Fig. 5).
281
Fig. 4 ABSMSA model
Additional services include day to day plan implementation, finance and maintenance conducted by coordinator agent, finance agent and maintenance agent
respectively.
The Swarm ESB acts as a virtual medium for communication between agent
services, the three knowledge bases and the enabler for the coordinated decision
making in the virtual discussion room.
5 Design and Development of ABSMSA
5.1 Goal Diagram
O-MaSE methodology is a meta-model and its various work-products are available
that are chosen to suite a particular organization’s needs. In Sect. 3.2.1 the authors
have already discussed the reason to choose the particular work-products [66]. In
goal modeling, a hierarchy of goals is constructed that comprehensively include all
the functionality of the O-MASE [67] (Fig. 5).
