maximum (FWHM) for the Lorentzian bands) of the fitted band components of the
G-band of SWCNTs, MWCNTs, and graphite, recorded at 532 nm excitation
wavelength, are presented in Table 4.1. As mentioned above, the other two components of the G-bands of the SWCNTs (CarboLex) and SWCNTs (Aldrich) were
fitted assuming a Lorentzian function, and the fitted peaks appeared at 1590 and
1606/1607 cm
−1 , respectively. The band at 1590 cm
−1 belongs to the A(A 1g ) and

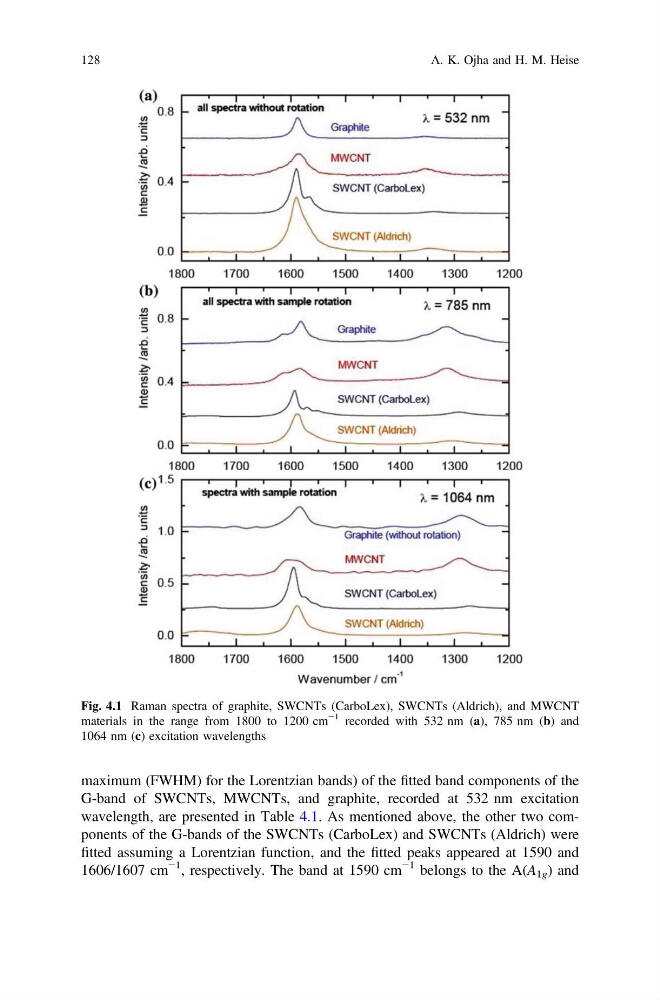

Fig. 4.1 Raman spectra of graphite, SWCNTs (CarboLex), SWCNTs (Aldrich), and MWCNT
materials in the range from 1800 to 1200 cm
−1 recorded with 532 nm (a), 785 nm (b) and
1064 nm (c) excitation wavelengths
128
A. K. Ojha and H. M. Heise
G-band of SWCNTs, MWCNTs, and graphite, recorded at 532 nm excitation
wavelength, are presented in Table 4.1. As mentioned above, the other two components of the G-bands of the SWCNTs (CarboLex) and SWCNTs (Aldrich) were
fitted assuming a Lorentzian function, and the fitted peaks appeared at 1590 and
1606/1607 cm
−1 , respectively. The band at 1590 cm
−1 belongs to the A(A 1g ) and
Fig. 4.1 Raman spectra of graphite, SWCNTs (CarboLex), SWCNTs (Aldrich), and MWCNT
materials in the range from 1800 to 1200 cm
−1 recorded with 532 nm (a), 785 nm (b) and
1064 nm (c) excitation wavelengths
128
A. K. Ojha and H. M. Heise
