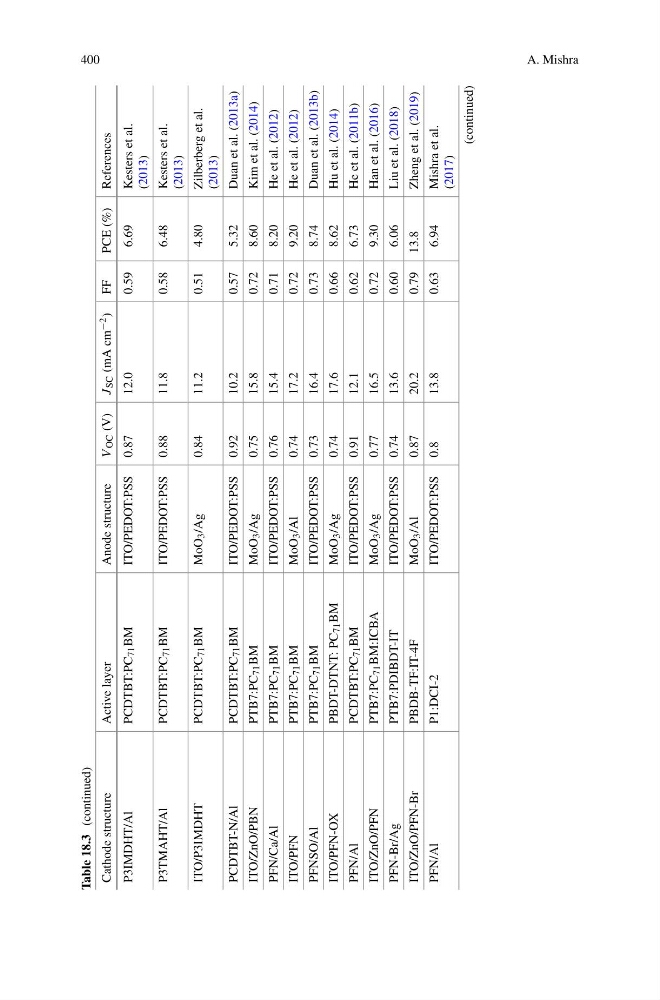

Table 18.3
(continued)
Cathode structure
Active layer
Anode structure
V
OC (V) J
SC (mA cm −2
) FF
PCE (%) References
P3IMDHT/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS 0.87
12.0
0.59
6.69
Kesters et al.
(2013)
P3TMAHT/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS 0.88
11.8
0.58
6.48
Kesters et al.
(2013)
ITO/P3IMDHT
PCDTBT:PC
71 BM
MoO
3 /Ag
0.84
11.2
0.51
4.80
Zilberberg et al.
(2013)
PCDTBT-N/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS 0.92
10.2
0.57
5.32
Duan et al. (2013a)
ITO/ZnO/PBN
PTB7:PC
71 BM
MoO
3 /Ag
0.75
15.8
0.72
8.60
Kim et al. (2014)
PFN/Ca/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS 0.76
15.4
0.71
8.20
He et al. (2012)
ITO/PFN
PTB7:PC
71 BM
MoO
3 /Al
0.74
17.2
0.72
9.20
He et al. (2012)
PFNSO/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS 0.73
16.4
0.73
8.74
Duan et al. (2013b)
ITO/PFN-OX
PBDT-DTNT: PC
71 BM
MoO
3 /Ag
0.74
17.6
0.66
8.62
Hu et al. (2014)
PFN/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS 0.91
12.1
0.62
6.73
He et al. (2011b)
ITO/ZnO/PFN
PTB7:PC
71 BM:ICBA
MoO
3 /Ag
0.77
16.5
0.72
9.30
Han et al. (2016)
PFN-Br/Ag
PTB7:PDIBDT-IT
ITO/PEDOT:PSS 0.74
13.6
0.60
6.06
Liu et al. (2018)
ITO/ZnO/PFN-Br
PBDB-TF:IT-4F
MoO
3 /Al
0.87
20.2
0.79 13.8
Zheng et al. (2019)
PFN/Al
P1:DCI-2
ITO/PEDOT:PSS 0.8
13.8
0.63
6.94
Mishra et al.
(2017)
