18 Interfacial Materials for Organic Solar Cells
395

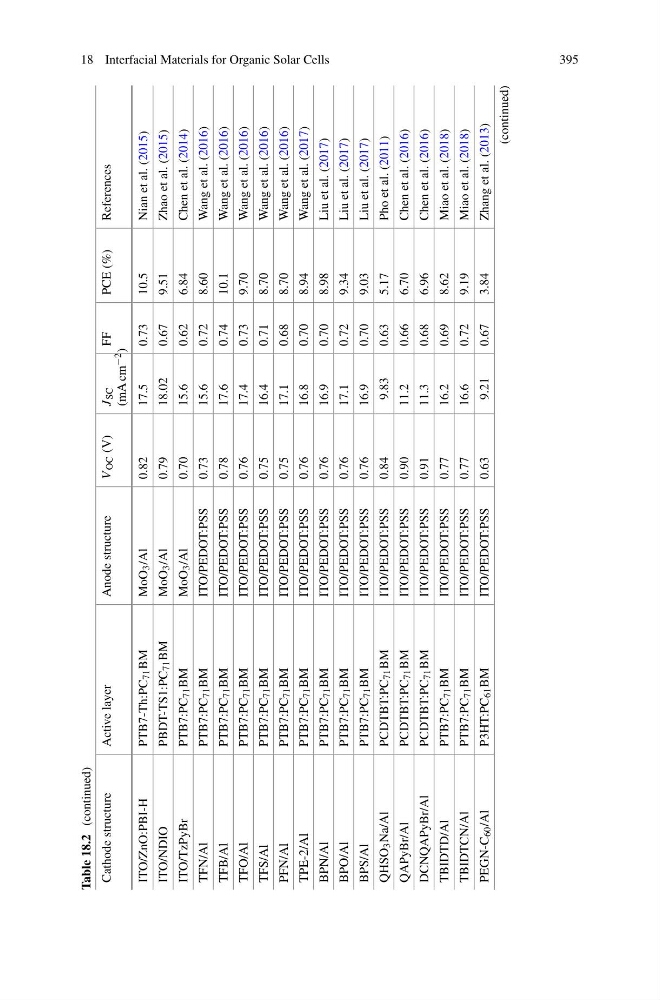

Table 18.2
(continued)
Cathode structure
Active layer
Anode structure
V
OC (V)
J
SC
(mA cm −2
)
FF
PCE (%)
References
ITO/ZnO:PBI-H
PTB7-Th:PC
71 BM
MoO
3 /Al
0.82
17.5
0.73
10.5
Nian et al. (2015)
ITO/NDIO
PBDT-TS1:PC
71 BM
MoO
3 /Al
0.79
18.02
0.67
9.51
Zhao et al. (2015)
ITO/TzPyBr
PTB7:PC
71 BM
MoO
3 /Al
0.70
15.6
0.62
6.84
Chen et al. (2014)
TFN/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.73
15.6
0.72
8.60
Wang et al. (2016)
TFB/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.78
17.6
0.74
10.1
Wang et al. (2016)
TFO/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.76
17.4
0.73
9.70
Wang et al. (2016)
TFS/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.75
16.4
0.71
8.70
Wang et al. (2016)
PFN/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.75
17.1
0.68
8.70
Wang et al. (2016)
TPE-2/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.76
16.8
0.70
8.94
Wang et al. (2017)
BPN/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.76
16.9
0.70
8.98
Liu et al. (2017)
BPO/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.76
17.1
0.72
9.34
Liu et al. (2017)
BPS/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.76
16.9
0.70
9.03
Liu et al. (2017)
QHSO
3 Na/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS
0.84
9.83
0.63
5.17
Pho et al. (2011)
QAPyBr/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS
0.90
11.2
0.66
6.70
Chen et al. (2016)
DCNQAPyBr/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS
0.91
11.3
0.68
6.96
Chen et al. (2016)
TBIDTD/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.77
16.2
0.69
8.62
Miao et al. (2018)
TBIDTCN/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.77
16.6
0.72
9.19
Miao et al. (2018)
PEGN-C
60 /Al
P3HT:PC
61 BM
ITO/PEDOT:PSS
0.63
9.21
0.67
3.84
Zhang et al. (2013)
(continued)
