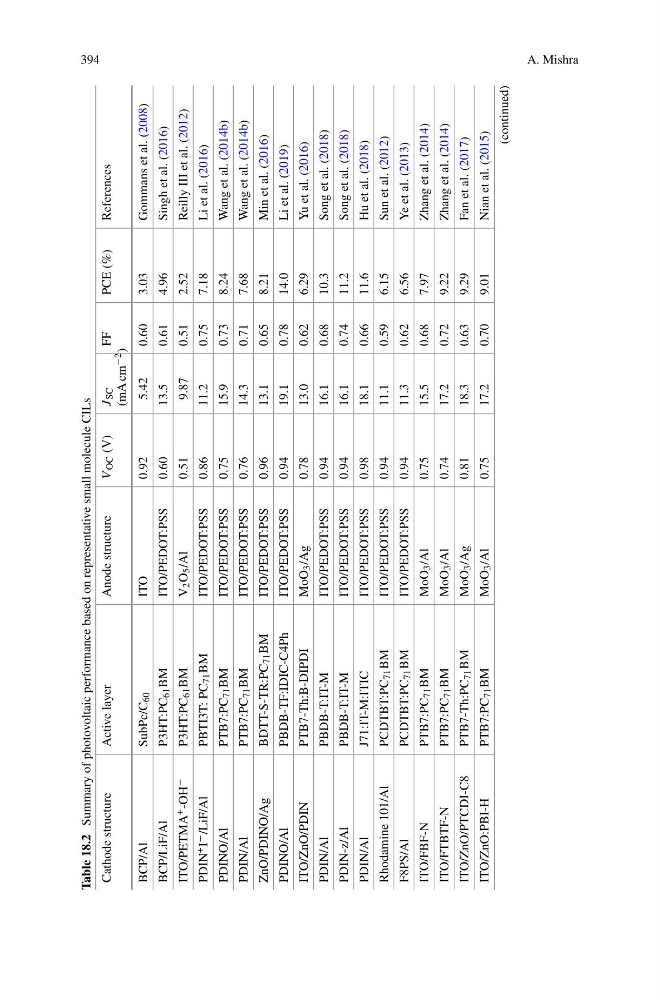

Table 18.2
Summary of photovoltaic performance based on representative small molecule CILs
Cathode structure
Active layer
Anode structure
V
OC (V)
J
SC
(mA cm −2
)
FF
PCE (%)
References
BCP/Al
SubPc/C
60
ITO
0.92
5.42
0.60
3.03
Gommans et al. (2008)
BCP/LiF/Al
P3HT:PC
61 BM
ITO/PEDOT:PSS
0.60
13.5
0.61
4.96
Singh et al. (2016)
ITO/PETMA +
-OH −
P3HT:PC
61 BM
V
2 O
5 /Al
0.51
9.87
0.51
2.52
Reilly III et al. (2012)
PDIN +
I −
/LiF/Al
PBTI3T: PC
71 BM
ITO/PEDOT:PSS
0.86
11.2
0.75
7.18
Li et al. (2016)
PDINO/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.75
15.9
0.73
8.24
Wang et al. (2014b)
PDIN/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.76
14.3
0.71
7.68
Wang et al. (2014b)
ZnO/PDINO/Ag
BDTT-S-TR:PC
71 BM
ITO/PEDOT:PSS
0.96
13.1
0.65
8.21
Min et al. (2016)
PDINO/Al
PBDB-TF:IDIC-C4Ph
ITO/PEDOT:PSS
0.94
19.1
0.78
14.0
Li et al. (2019)
ITO/ZnO/PDIN
PTB7-Th:B-DIPDI
MoO
3 /Ag
0.78
13.0
0.62
6.29
Yu et al. (2016)
PDIN/Al
PBDB-T:IT-M
ITO/PEDOT:PSS
0.94
16.1
0.68
10.3
Song et al. (2018)
PDIN-z/Al
PBDB-T:IT-M
ITO/PEDOT:PSS
0.94
16.1
0.74
11.2
Song et al. (2018)
PDIN/Al
J71:IT-M:ITIC
ITO/PEDOT:PSS
0.98
18.1
0.66
11.6
Hu et al. (2018)
Rhodamine 101/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS
0.94
11.1
0.59
6.15
Sun et al. (2012)
F8PS/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS
0.94
11.3
0.62
6.56
Ye et al. (2013)
ITO/FBF-N
PTB7:PC
71 BM
MoO
3 /Al
0.75
15.5
0.68
7.97
Zhang et al. (2014)
ITO/FTBTF-N
PTB7:PC
71 BM
MoO
3 /Al
0.74
17.2
0.72
9.22
Zhang et al. (2014)
ITO/ZnO/PTCDI-C8
PTB7-Th:PC
71 BM
MoO
3 /Ag
0.81
18.3
0.63
9.29
Fan et al. (2017)
ITO/ZnO:PBI-H
PTB7:PC
71 BM
MoO
3 /Al
0.75
17.2
0.70
9.01
Nian et al. (2015)
(continued)
