380
A. Mishra

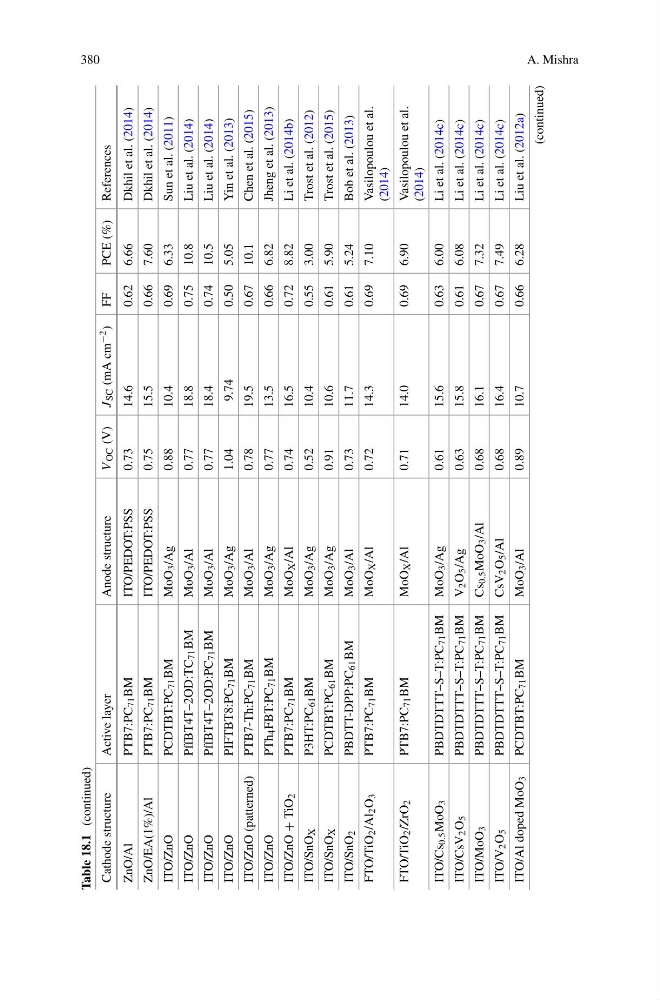

Table 18.1
(continued)
Cathode structure
Active layer
Anode structure
V
OC (V) J
SC (mA cm −2
) FF
PCE (%) References
ZnO/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.73
14.6
0.62 6.66
Dkhil et al. (2014)
ZnO/EA(1%)/Al
PTB7:PC
71 BM
ITO/PEDOT:PSS
0.75
15.5
0.66 7.60
Dkhil et al. (2014)
ITO/ZnO
PCDTBT:PC
71 BM
MoO
3 /Ag
0.88
10.4
0.69 6.33
Sun et al. (2011)
ITO/ZnO
PffBT4T–2OD:TC
71 BM
MoO
3 /Al
0.77
18.8
0.75 10.8
Liu et al. (2014)
ITO/ZnO
PffBT4T–2OD:PC
71 BM
MoO
3 /Al
0.77
18.4
0.74 10.5
Liu et al. (2014)
ITO/ZnO
PIFTBT8:PC
71 BM
MoO
3 /Ag
1.04
9.74
0.50 5.05
Yin et al. (2013)
ITO/ZnO (patterned)
PTB7-Th:PC
71 BM
MoO
3 /Al
0.78
19.5
0.67 10.1
Chen et al. (2015)
ITO/ZnO
PTh
4 FBT:PC
71 BM
MoO
3 /Ag
0.77
13.5
0.66 6.82
Jheng et al. (2013)
ITO/ZnO
+ TiO
2
PTB7:PC
71 BM
MoO
X /Al
0.74
16.5
0.72 8.82
Li et al. (2014b)
ITO/SnO
X
P3HT:PC
61 BM
MoO
3 /Ag
0.52
10.4
0.55 3.00
Trost et al. (2012)
ITO/SnO
X
PCDTBT:PC
61 BM
MoO
3 /Ag
0.91
10.6
0.61 5.90
Trost et al. (2015)
ITO/SnO
2
PBDTT-DPP:PC
61 BM
MoO
3 /Al
0.73
11.7
0.61 5.24
Bob et al. (2013)
FTO/TiO
2 /Al
2 O
3
PTB7:PC
71 BM
MoO
X /Al
0.72
14.3
0.69 7.10
Vasilopoulou et al.
(2014)
FTO/TiO
2 /ZrO
2
PTB7:PC
71 BM
MoO
X /Al
0.71
14.0
0.69 6.90
Vasilopoulou et al.
(2014)
ITO/Cs
0.5 MoO
3
PBDTDTTT–S–T:PC
71 BM MoO
3 /Ag
0.61
15.6
0.63 6.00
Li et al. (2014c)
ITO/CsV
2 O
5
PBDTDTTT–S–T:PC
71 BM V
2 O
5 /Ag
0.63
15.8
0.61 6.08
Li et al. (2014c)
ITO/MoO
3
PBDTDTTT–S–T:PC
71 BM Cs
0.5 MoO
3 /Al
0.68
16.1
0.67 7.32
Li et al. (2014c)
ITO/V
2 O
5
PBDTDTTT–S–T:PC
71 BM CsV
2 O
5 /Al
0.68
16.4
0.67 7.49
Li et al. (2014c)
ITO/Al doped MoO
3
PCDTBT:PC
71 BM
MoO
3 /Al
0.89
10.7
0.66 6.28
Liu et al. (2012a)
(continued)
