18 Interfacial Materials for Organic Solar Cells
379

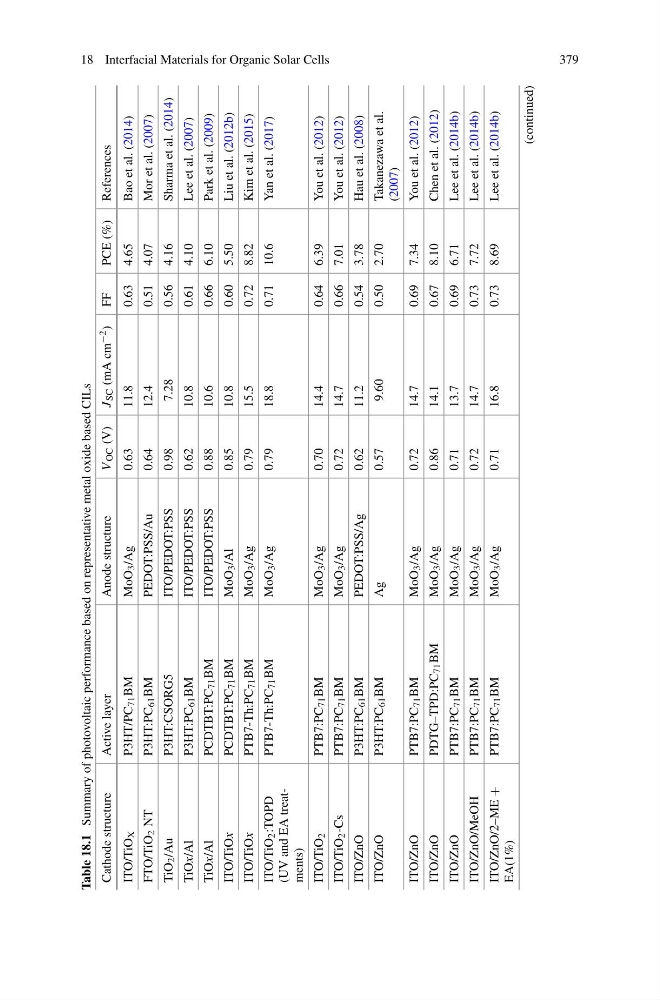

Table 18.1
Summary of photovoltaic performance based on representative metal oxide based CILs
Cathode structure
Active layer
Anode structure
V
OC (V) J
SC (mA cm −2
) FF
PCE (%) References
ITO/TiO
X
P3HT/PC
71 BM
MoO
3 /Ag
0.63
11.8
0.63 4.65
Bao et al. (2014)
FTO/TiO
2 NT
P3HT:PC
61 BM
PEDOT:PSS/Au
0.64
12.4
0.51 4.07
Mor et al. (2007)
TiO
2 /Au
P3HT:CSORG5
ITO/PEDOT:PSS
0.98
7.28
0.56 4.16
Sharma et al. (2014)
TiOx/Al
P3HT:PC
61 BM
ITO/PEDOT:PSS
0.62
10.8
0.61 4.10
Lee et al. (2007)
TiOx/Al
PCDTBT:PC
71 BM
ITO/PEDOT:PSS
0.88
10.6
0.66 6.10
Park et al. (2009)
ITO/TiOx
PCDTBT:PC
71 BM
MoO
3 /Al
0.85
10.8
0.60 5.50
Liu et al. (2012b)
ITO/TiOx
PTB7-Th:PC
71 BM
MoO
3 /Ag
0.79
15.5
0.72 8.82
Kim et al. (2015)
ITO/TiO
2 :TOPD
(UV and EA treatments)
PTB7-Th:PC
71 BM
MoO
3 /Ag
0.79
18.8
0.71 10.6
Yan et al. (2017)
ITO/TiO
2
PTB7:PC
71 BM
MoO
3 /Ag
0.70
14.4
0.64 6.39
You et al. (2012)
ITO/TiO
2 -Cs
PTB7:PC
71 BM
MoO
3 /Ag
0.72
14.7
0.66 7.01
You et al. (2012)
ITO/ZnO
P3HT:PC
61 BM
PEDOT:PSS/Ag
0.62
11.2
0.54 3.78
Hau et al. (2008)
ITO/ZnO
P3HT:PC
61 BM
Ag
0.57
9.60
0.50 2.70
Takanezawa et al.
(2007)
ITO/ZnO
PTB7:PC
71 BM
MoO
3 /Ag
0.72
14.7
0.69 7.34
You et al. (2012)
ITO/ZnO
PDTG–TPD:PC
71 BM
MoO
3 /Ag
0.86
14.1
0.67 8.10
Chen et al. (2012)
ITO/ZnO
PTB7:PC
71 BM
MoO
3 /Ag
0.71
13.7
0.69 6.71
Lee et al. (2014b)
ITO/ZnO/MeOH
PTB7:PC
71 BM
MoO
3 /Ag
0.72
14.7
0.73 7.72
Lee et al. (2014b)
ITO/ZnO/2–ME
+
EA(1%)
PTB7:PC
71 BM
MoO
3 /Ag
0.71
16.8
0.73 8.69
Lee et al. (2014b)
(continued)
