11.1.3 Sectors Needing Resilience
Disturbances or shocks, such as floods, hurricanes, earthquakes, economic crisis,
whenever they occur, do affect the performance of existing infrastructure goods or
services (to name, just a few, roads, drains, buildings, hospitals, industry). The
performance of these sectors gives a good idea of the resilience of such systems or
sectors.
Table 11.1 provides a list of infrastructure systems which affect everyday life, and
which may be critical in enabling a normal day’s work. Therefore, it is not difficult,
once it is understood, to extend the concept of resilience to the range of sectors, as
shown in Fig. 11.5.
Shock
Shock
Shock
Shock
(a) Linear
100%
0
P
T
T
T
T
100%
0
P
P
100%
0
100%
0
P
(b) Logarithmic
(c) ExponenƟal
(d) Discrete
Legend:
P = Performance Level
T = Time

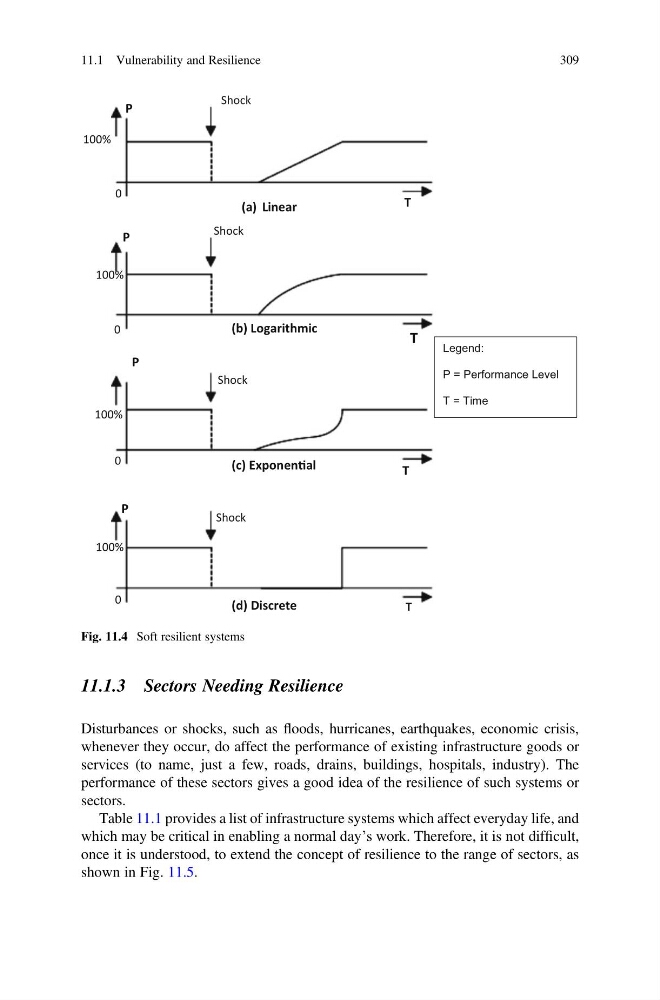

Fig. 11.4 Soft resilient systems
11.1 Vulnerability and Resilience
309
