Figure 3.7 shows four buildings A, B, C and D which are fed from one central
pipe. The other four buildings E, F, G and H are, however, fed differently with
different lengths and sizes of pipes.
Whether the buildings A, B, C and D are individual flats, medium-rise or high rise
buildings will affect the sizes of the pipes used.
Consider, for a moment, the buildings A 1 , A 2 , A 3 , A 4 on Fig. 3.8. If they can be
grouped on top of each other, they can form the group of buildings A shown on
Figs. 3.7 or 3.9.
Figure 3.7 also shows that buildings G, H, E 1 , and F 1 , are fed through two lines
installed on different sides of the same road, so as to minimise disturbance to road
users and customers during repairs and maintenance works.

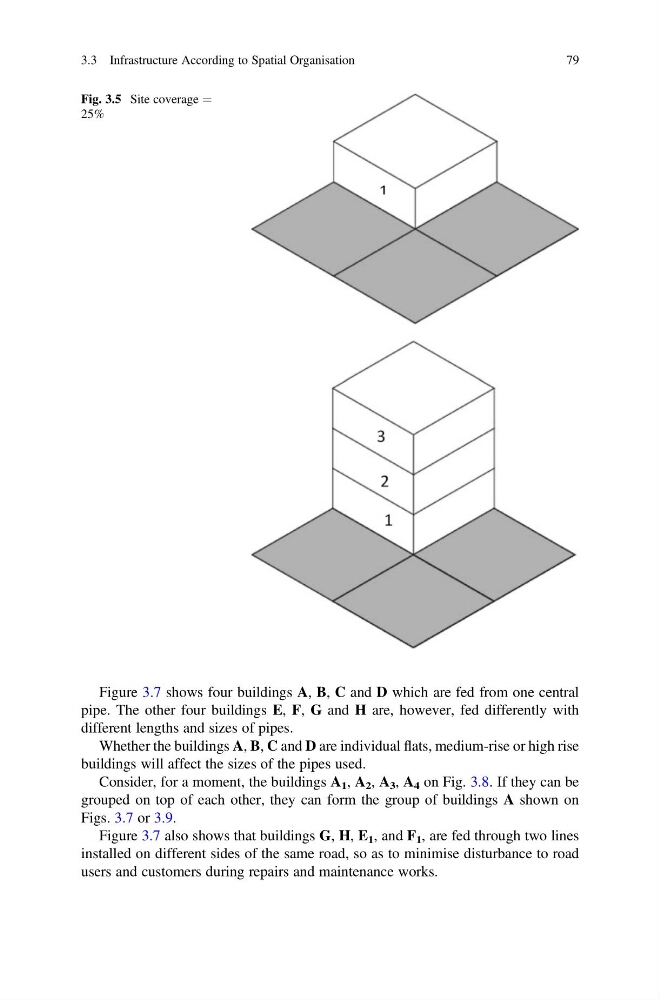

Fig. 3.5 Site coverage ¼
