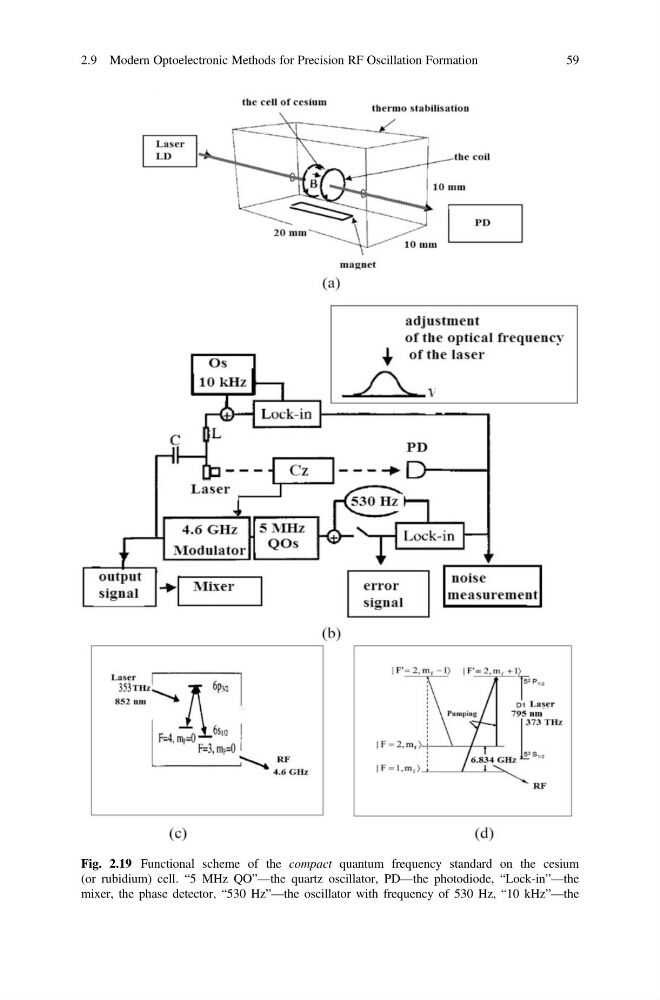

Fig. 2.19 Functional scheme of the compact quantum frequency standard on the cesium
(or rubidium) cell. “5 MHz QO”—the quartz oscillator, PD—the photodiode, “Lock-in”—the
mixer, the phase detector, “530 Hz”—the oscillator with frequency of 530 Hz, “10 kHz”—the
