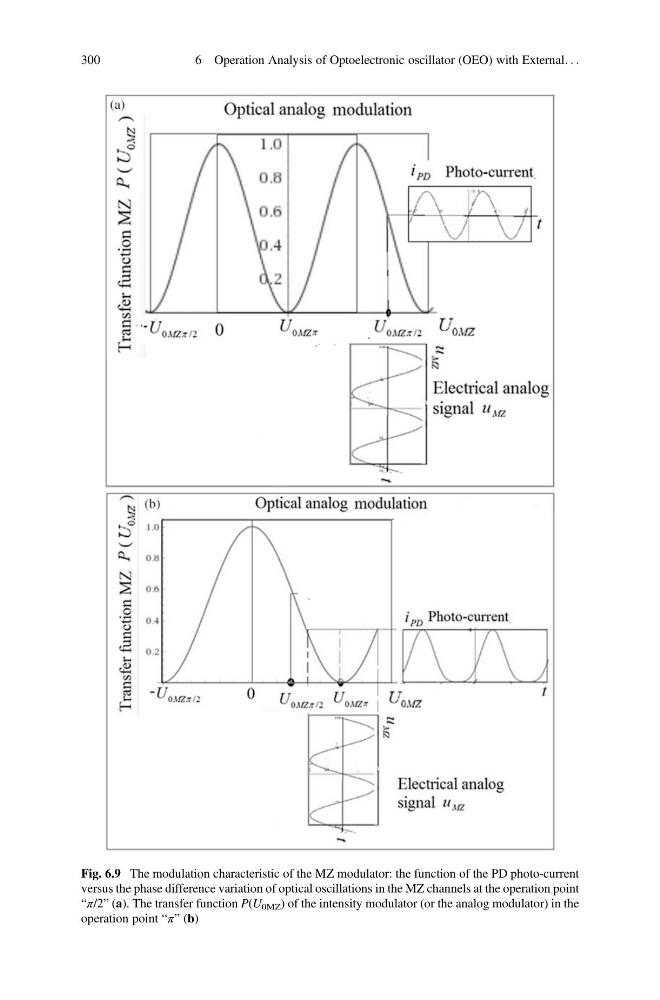

Fig. 6.9 The modulation characteristic of the MZ modulator: the function of the PD photo-current
versus the phase difference variation of optical oscillations in the MZ channels at the operation point
“π/2” (a). The transfer function P(U 0MZ ) of the intensity modulator (or the analog modulator) in the
operation point “π” (b)
