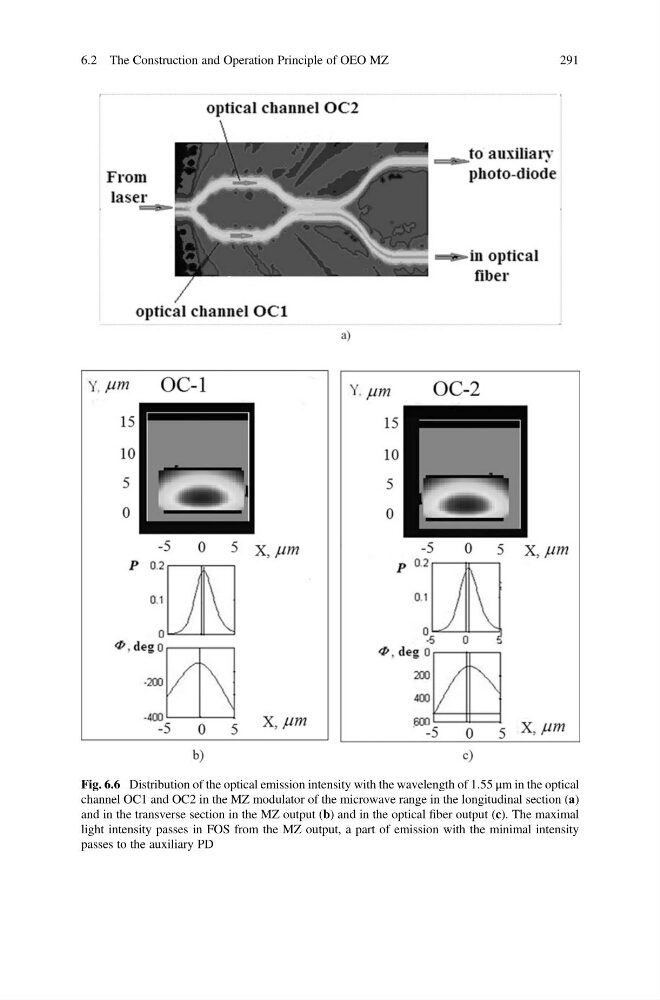

Fig. 6.6 Distribution of the optical emission intensity with the wavelength of 1.55 μm in the optical
channel OC1 and OC2 in the MZ modulator of the microwave range in the longitudinal section (а)
and in the transverse section in the MZ output (b) and in the optical fiber output (c). The maximal
light intensity passes in FOS from the MZ output, a part of emission with the minimal intensity
passes to the auxiliary PD
