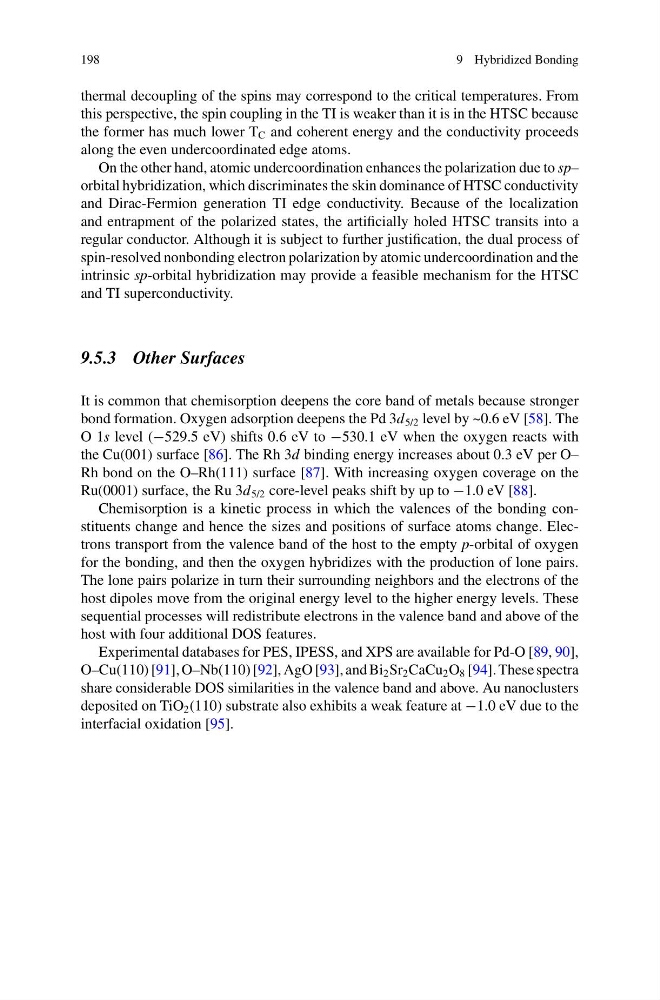

198
9 Hybridized Bonding
thermal decoupling of the spins may correspond to the critical temperatures. From
this perspective, the spin coupling in the TI is weaker than it is in the HTSC because
the former has much lower T C and coherent energy and the conductivity proceeds
along the even undercoordinated edge atoms.
On the other hand, atomic undercoordination enhances the polarization due to sp–
orbital hybridization, which discriminates the skin dominance of HTSC conductivity
and Dirac-Fermion generation TI edge conductivity. Because of the localization
and entrapment of the polarized states, the artificially holed HTSC transits into a
regular conductor. Although it is subject to further justification, the dual process of
spin-resolved nonbonding electron polarization by atomic undercoordination and the
intrinsic sp-orbital hybridization may provide a feasible mechanism for the HTSC
and TI superconductivity.
9.5.3 Other Surfaces
It is common that chemisorption deepens the core band of metals because stronger
bond formation. Oxygen adsorption deepens the Pd 3d 5/2 level by ~0.6 eV [58]. The
O 1s level (−529.5 eV) shifts 0.6 eV to −530.1 eV when the oxygen reacts with
the Cu(001) surface [86]. The Rh 3d binding energy increases about 0.3 eV per O–
Rh bond on the O–Rh(111) surface [87]. With increasing oxygen coverage on the
Ru(0001) surface, the Ru 3d 5/2 core-level peaks shift by up to −1.0 eV [88].
Chemisorption is a kinetic process in which the valences of the bonding constituents change and hence the sizes and positions of surface atoms change. Electrons transport from the valence band of the host to the empty p-orbital of oxygen
for the bonding, and then the oxygen hybridizes with the production of lone pairs.
The lone pairs polarize in turn their surrounding neighbors and the electrons of the
host dipoles move from the original energy level to the higher energy levels. These
sequential processes will redistribute electrons in the valence band and above of the
host with four additional DOS features.
Experimental databases for PES, IPESS, and XPS are available for Pd-O [89, 90],
O–Cu(110) [91], O–Nb(110) [92], AgO [93], and Bi 2 Sr 2 CaCu 2 O 8 [94]. These spectra
share considerable DOS similarities in the valence band and above. Au nanoclusters
deposited on TiO 2 (110) substrate also exhibits a weak feature at −1.0 eV due to the
interfacial oxidation [95].
9 Hybridized Bonding
thermal decoupling of the spins may correspond to the critical temperatures. From
this perspective, the spin coupling in the TI is weaker than it is in the HTSC because
the former has much lower T C and coherent energy and the conductivity proceeds
along the even undercoordinated edge atoms.
On the other hand, atomic undercoordination enhances the polarization due to sp–
orbital hybridization, which discriminates the skin dominance of HTSC conductivity
and Dirac-Fermion generation TI edge conductivity. Because of the localization
and entrapment of the polarized states, the artificially holed HTSC transits into a
regular conductor. Although it is subject to further justification, the dual process of
spin-resolved nonbonding electron polarization by atomic undercoordination and the
intrinsic sp-orbital hybridization may provide a feasible mechanism for the HTSC
and TI superconductivity.
9.5.3 Other Surfaces
It is common that chemisorption deepens the core band of metals because stronger
bond formation. Oxygen adsorption deepens the Pd 3d 5/2 level by ~0.6 eV [58]. The
O 1s level (−529.5 eV) shifts 0.6 eV to −530.1 eV when the oxygen reacts with
the Cu(001) surface [86]. The Rh 3d binding energy increases about 0.3 eV per O–
Rh bond on the O–Rh(111) surface [87]. With increasing oxygen coverage on the
Ru(0001) surface, the Ru 3d 5/2 core-level peaks shift by up to −1.0 eV [88].
Chemisorption is a kinetic process in which the valences of the bonding constituents change and hence the sizes and positions of surface atoms change. Electrons transport from the valence band of the host to the empty p-orbital of oxygen
for the bonding, and then the oxygen hybridizes with the production of lone pairs.
The lone pairs polarize in turn their surrounding neighbors and the electrons of the
host dipoles move from the original energy level to the higher energy levels. These
sequential processes will redistribute electrons in the valence band and above of the
host with four additional DOS features.
Experimental databases for PES, IPESS, and XPS are available for Pd-O [89, 90],
O–Cu(110) [91], O–Nb(110) [92], AgO [93], and Bi 2 Sr 2 CaCu 2 O 8 [94]. These spectra
share considerable DOS similarities in the valence band and above. Au nanoclusters
deposited on TiO 2 (110) substrate also exhibits a weak feature at −1.0 eV due to the
interfacial oxidation [95].
